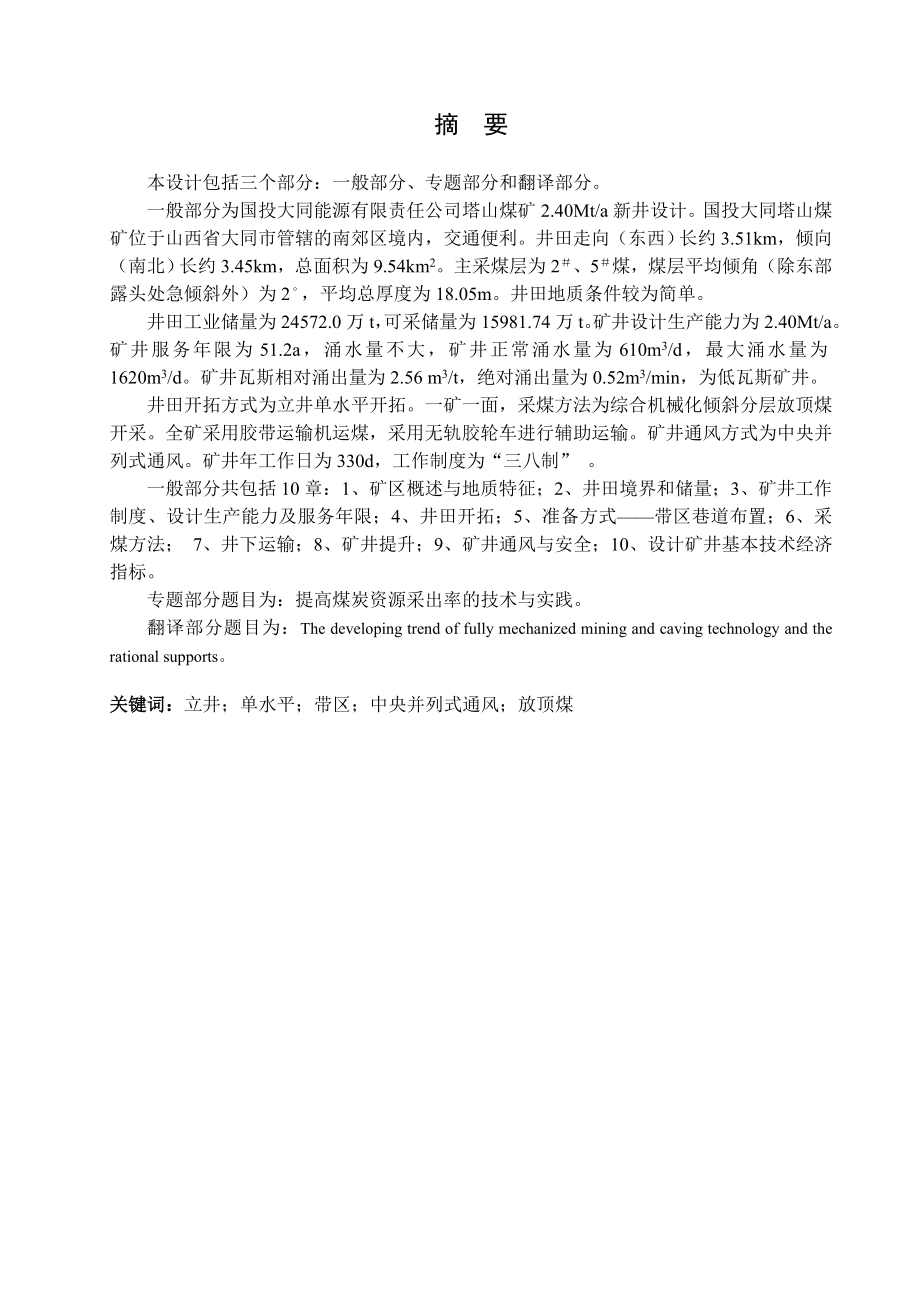

1、摘 要本设计包括三个部分：一般部分、专题部分和翻译部分。一般部分为国投大同能源有限责任公司塔山煤矿2.40Mt/a新井设计。国投大同塔山煤矿位于山西省大同市管辖的南郊区境内，交通便利。井田走向（东西）长约3.51km，倾向（南北）长约3.45km，总面积为9.54km2。主采煤层为2、5煤，煤层平均倾角（除东部露头处急倾斜外）为2，平均总厚度为18.05m。井田地质条件较为简单。井田工业储量为24572.0万t，可采储量为15981.74万t。矿井设计生产能力为2.40Mt/a。矿井服务年限为51.2a，涌水量不大，矿井正常涌水量为610m3/d，最大涌水量为1620m3/d。矿井瓦斯相对涌出
2、量为2.56 m3/t，绝对涌出量为0.52m3/min，为低瓦斯矿井。井田开拓方式为立井单水平开拓。一矿一面，采煤方法为综合机械化倾斜分层放顶煤开采。全矿采用胶带运输机运煤，采用无轨胶轮车进行辅助运输。矿井通风方式为中央并列式通风。矿井年工作日为330d，工作制度为“三八制” 。一般部分共包括10章：1、矿区概述与地质特征；2、井田境界和储量；3、矿井工作制度、设计生产能力及服务年限；4、井田开拓；5、准备方式带区巷道布置；6、采煤方法； 7、井下运输；8、矿井提升；9、矿井通风与安全；10、设计矿井基本技术经济指标。专题部分题目为：提高煤炭资源采出率的技术与实践。翻译部分题目为：The d

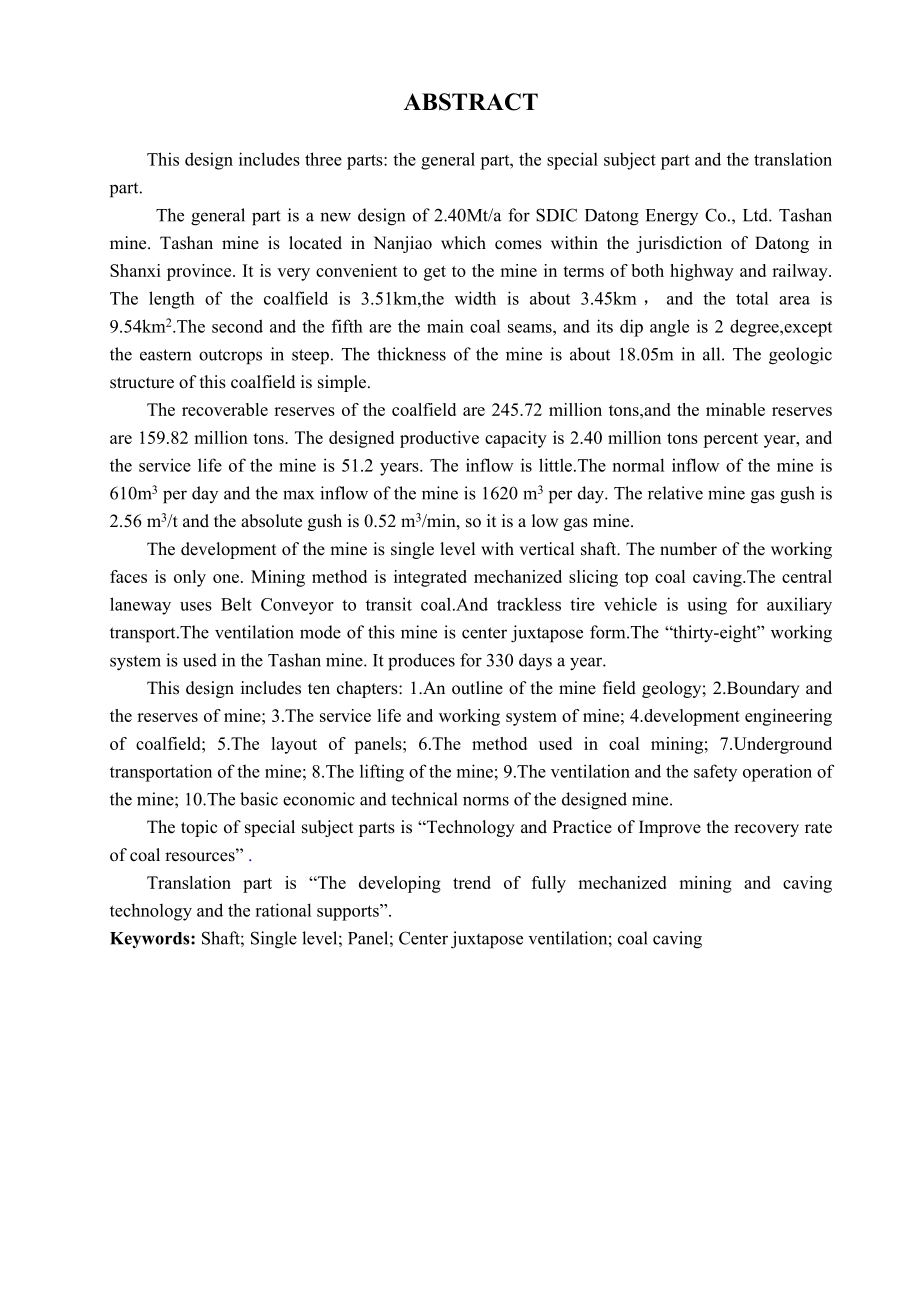

3、eveloping trend of fully mechanized mining and caving technology and the rational supports。关键词：立井；单水平；带区；中央并列式通风；放顶煤ABSTRACTThis design includes three parts: the general part, the special subject part and the translation part. The general part is a new design of 2.40Mt/a for SDIC Datong Energy Co.,
4、Ltd. Tashan mine. Tashan mine is located in Nanjiao which comes within the jurisdiction of Datong in Shanxi province. It is very convenient to get to the mine in terms of both highway and railway. The length of the coalfield is 3.51km,the width is about 3.45km，and the total area is 9.54km2.The secon
5、d and the fifth are the main coal seams, and its dip angle is 2 degree,except the eastern outcrops in steep. The thickness of the mine is about 18.05m in all. The geologic structure of this coalfield is simple.The recoverable reserves of the coalfield are 245.72 million tons,and the minable reserves
6、 are 159.82 million tons. The designed productive capacity is 2.40 million tons percent year, and the service life of the mine is 51.2 years. The inflow is little.The normal inflow of the mine is 610m3 per day and the max inflow of the mine is 1620 m3 per day. The relative mine gas gush is 2.56 m3/t
7、 and the absolute gush is 0.52 m3/min, so it is a low gas mine. The development of the mine is single level with vertical shaft. The number of the working faces is only one. Mining method is integrated mechanized slicing top coal caving.The central laneway uses Belt Conveyor to transit coal.And trac
8、kless tire vehicle is using for auxiliary transport.The ventilation mode of this mine is center juxtapose form.The “thirty-eight” working system is used in the Tashan mine. It produces for 330 days a year. This design includes ten chapters: 1.An outline of the mine field geology; 2.Boundary and the
9、reserves of mine; 3.The service life and working system of mine; 4.development engineering of coalfield; 5.The layout of panels; 6.The method used in coal mining; 7.Underground transportation of the mine; 8.The lifting of the mine; 9.The ventilation and the safety operation of the mine; 10.The basic
10、 economic and technical norms of the designed mine.The topic of special subject parts is “Technology and Practice of Improve the recovery rate of coal resources” .Translation part is “The developing trend of fully mechanized mining and caving technology and the rational supports”.Keywords: Shaft; Si

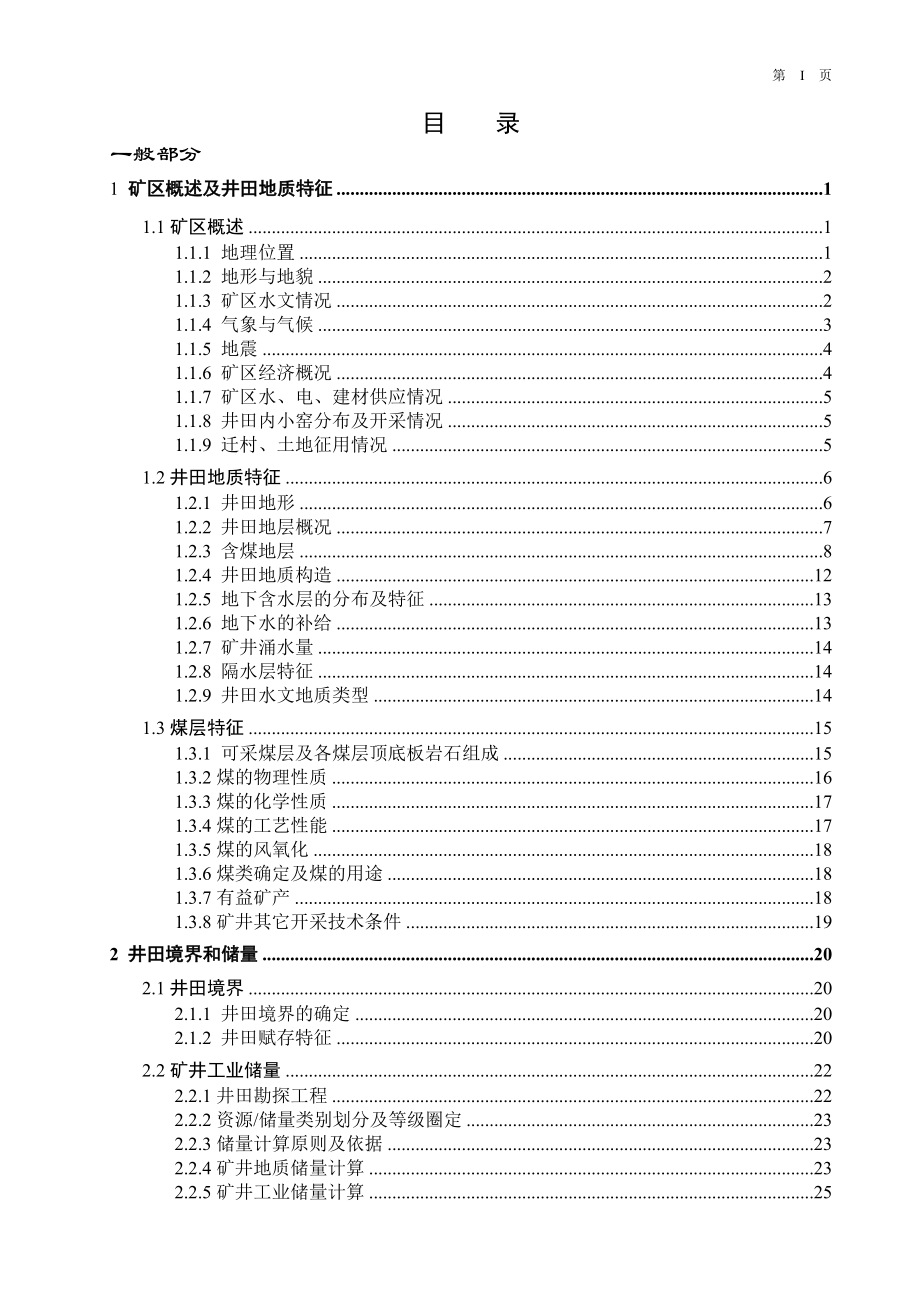

11、ngle level; Panel; Center juxtapose ventilation; coal caving 第 V 页目 录一般部分1 矿区概述及井田地质特征11.1矿区概述11.1.1 地理位置11.1.2 地形与地貌21.1.3 矿区水文情况21.1.4 气象与气候31.1.5 地震41.1.6 矿区经济概况41.1.7 矿区水、电、建材供应情况51.1.8 井田内小窑分布及开采情况51.1.9 迁村、土地征用情况51.2井田地质特征61.2.1 井田地形61.2.2 井田地层概况71.2.3 含煤地层81.2.4 井田地质构造121.2.5 地下含水层的分布及特征131.2
12、.6 地下水的补给131.2.7 矿井涌水量141.2.8 隔水层特征141.2.9 井田水文地质类型141.3煤层特征151.3.1 可采煤层及各煤层顶底板岩石组成151.3.2煤的物理性质161.3.3煤的化学性质171.3.4煤的工艺性能171.3.5煤的风氧化181.3.6煤类确定及煤的用途181.3.7有益矿产181.3.8矿井其它开采技术条件192 井田境界和储量202.1井田境界202.1.1 井田境界的确定202.1.2 井田赋存特征202.2矿井工业储量222.2.1井田勘探工程222.2.2资源/储量类别划分及等级圈定232.2.3储量计算原则及依据232.2.4矿井地质储
13、量计算232.2.5矿井工业储量计算252.3矿井可采储量262.3.1安全煤柱留设原则262.3.2矿井保护煤柱损失量262.3.3矿井可采储量计算283 矿井工作制度、设计生产能力及服务年限293.1矿井工作制度393.2矿井设计生产能力及服务年限393.2.1 确定依据393.2.2矿井设计生产能力393.2.3矿井服务年限304 井田开拓314.1井田开拓的基本问题314.1.1确定井筒形式、数目、位置及坐标314.1.2工业广场的位置334.1.3开采水平的确定及井田直接划分为带区334.1.4主要开拓巷道334.1.5确定开拓方案344.2矿井基本巷道414.2.1确定井筒形式、数
