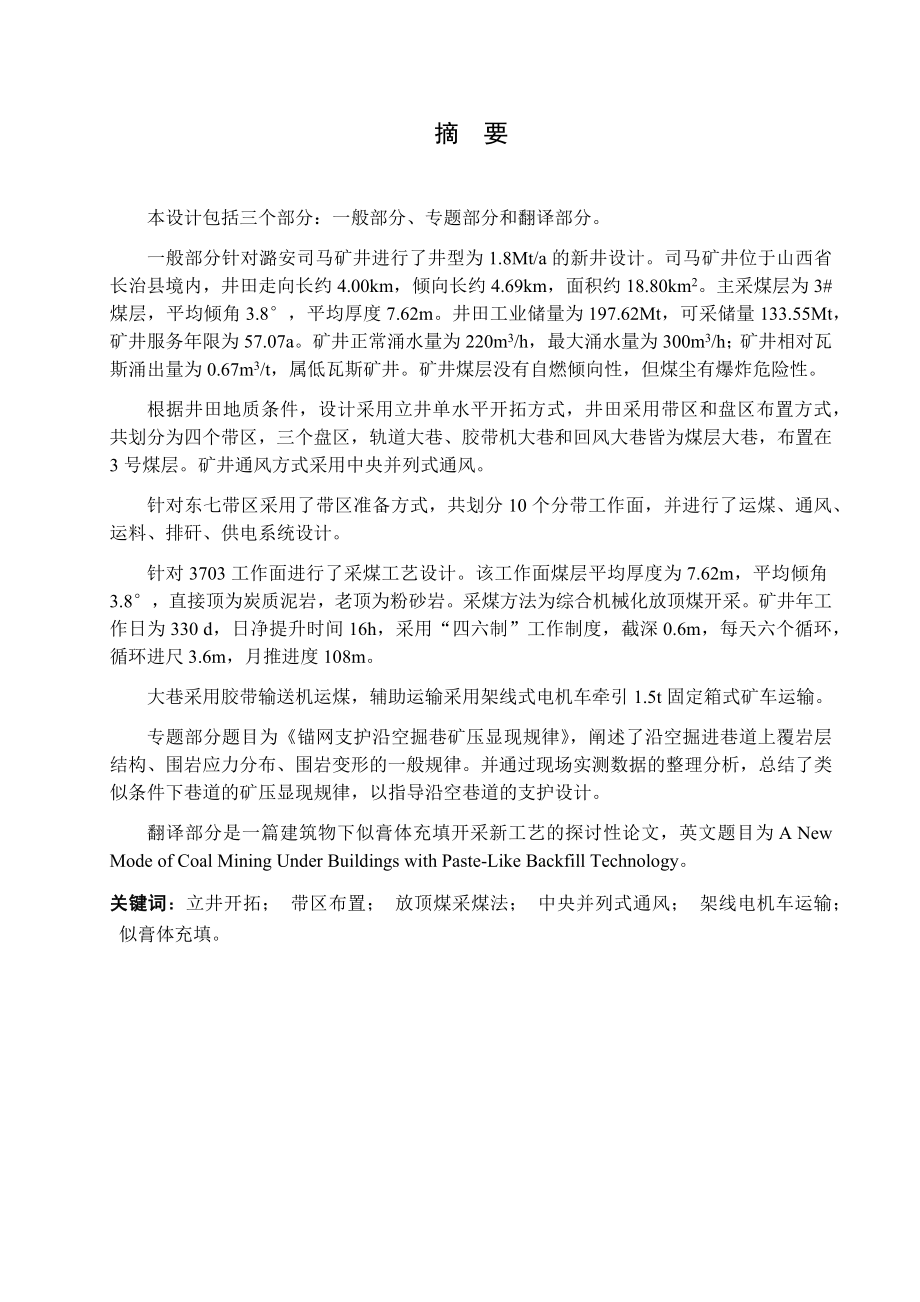

1、摘 要本设计包括三个部分：一般部分、专题部分和翻译部分。一般部分针对潞安司马矿井进行了井型为1.8Mt/a的新井设计。司马矿井位于山西省长治县境内，井田走向长约4.00km，倾向长约4.69km，面积约18.80km2。主采煤层为3#煤层，平均倾角3.8，平均厚度7.62m。井田工业储量为197.62Mt，可采储量133.55Mt，矿井服务年限为57.07a。矿井正常涌水量为220m3/h，最大涌水量为300m3/h；矿井相对瓦斯涌出量为0.67m3/t，属低瓦斯矿井。矿井煤层没有自燃倾向性，但煤尘有爆炸危险性。根据井田地质条件，设计采用立井单水平开拓方式，井田采用带区和盘区布置方式，共划分为
2、四个带区，三个盘区，轨道大巷、胶带机大巷和回风大巷皆为煤层大巷，布置在3号煤层。矿井通风方式采用中央并列式通风。针对东七带区采用了带区准备方式，共划分10个分带工作面，并进行了运煤、通风、运料、排矸、供电系统设计。针对3703工作面进行了采煤工艺设计。该工作面煤层平均厚度为7.62m，平均倾角3.8，直接顶为炭质泥岩，老顶为粉砂岩。采煤方法为综合机械化放顶煤开采。矿井年工作日为330 d，日净提升时间16h，采用“四六制”工作制度，截深0.6m，每天六个循环，循环进尺3.6m，月推进度108m。大巷采用胶带输送机运煤，辅助运输采用架线式电机车牵引1.5t固定箱式矿车运输。专题部分题目为锚网支护
3、沿空掘巷矿压显现规律，阐述了沿空掘进巷道上覆岩层结构、围岩应力分布、围岩变形的一般规律。并通过现场实测数据的整理分析，总结了类似条件下巷道的矿压显现规律，以指导沿空巷道的支护设计。翻译部分是一篇建筑物下似膏体充填开采新工艺的探讨性论文，英文题目为A New Mode of Coal Mining Under Buildings with Paste-Like Backfill Technology。关键词：立井开拓； 带区布置； 放顶煤采煤法； 中央并列式通风； 架线电机车运输；似膏体充填。ABSTRACTThis design includes three parts: the genera

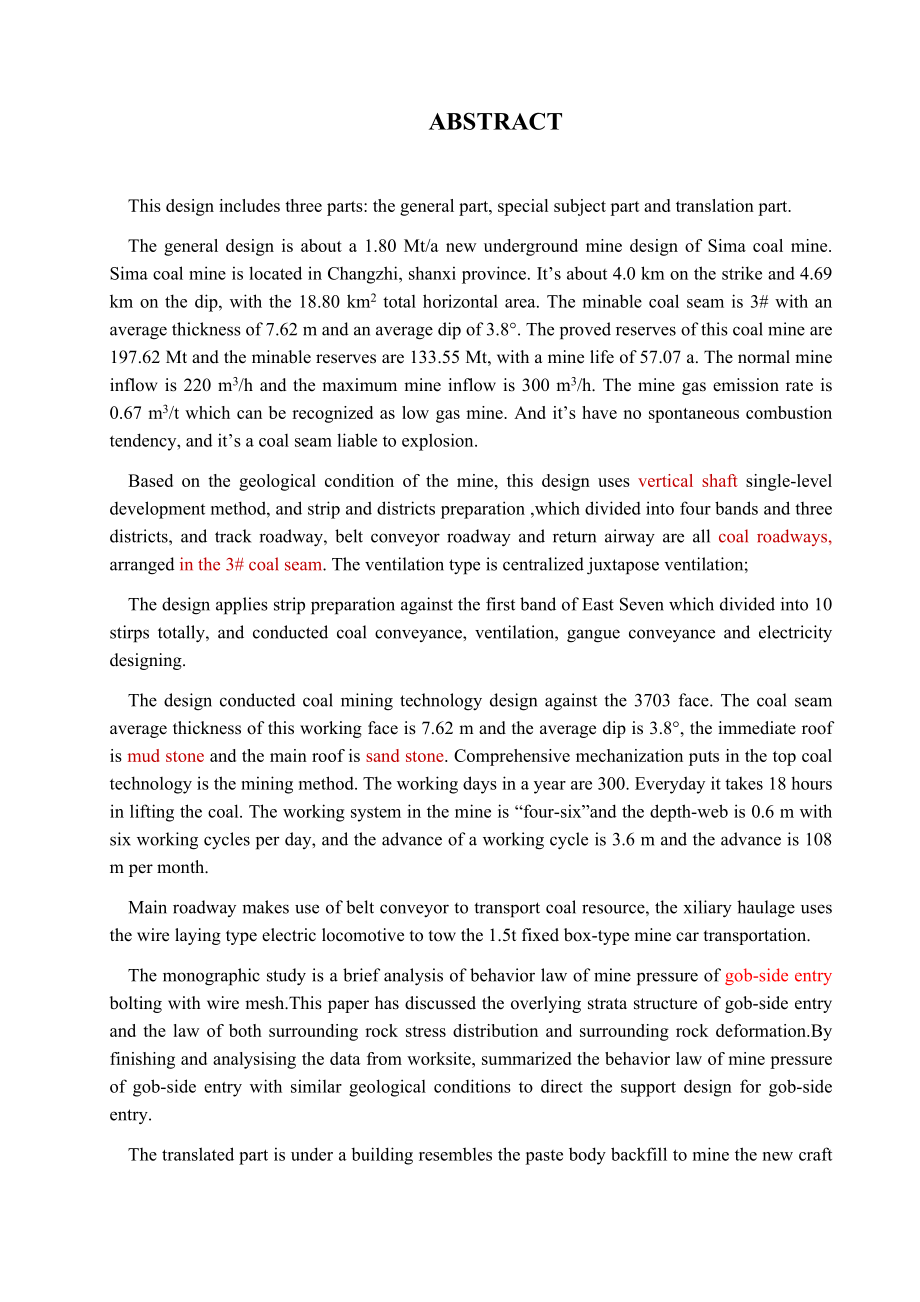

4、l part, special subject part and translation part.The general design is about a 1.80 Mt/a new underground mine design of Sima coal mine. Sima coal mine is located in Changzhi, shanxi province. Its about 4.0 km on the strike and 4.69 km on the dip, with the 18.80 km2 total horizontal area. The minabl
5、e coal seam is 3# with an average thickness of 7.62 m and an average dip of 3.8. The proved reserves of this coal mine are 197.62 Mt and the minable reserves are 133.55 Mt, with a mine life of 57.07 a. The normal mine inflow is 220 m3/h and the maximum mine inflow is 300 m3/h. The mine gas emission
6、rate is 0.67 m3/t which can be recognized as low gas mine. And its have no spontaneous combustion tendency, and its a coal seam liable to explosion.Based on the geological condition of the mine, this design uses vertical shaft single-level development method, and strip and districts preparation ,whi
7、ch divided into four bands and three districts, and track roadway, belt conveyor roadway and return airway are all coal roadways, arranged in the 3# coal seam. The ventilation type is centralized juxtapose ventilation;The design applies strip preparation against the first band of East Seven which di
8、vided into 10 stirps totally, and conducted coal conveyance, ventilation, gangue conveyance and electricity designing.The design conducted coal mining technology design against the 3703 face. The coal seam average thickness of this working face is 7.62 m and the average dip is 3.8, the immediate roo
9、f is mud stone and the main roof is sand stone. Comprehensive mechanization puts in the top coal technology is the mining method. The working days in a year are 300. Everyday it takes 18 hours in lifting the coal. The working system in the mine is “four-six”and the depth-web is 0.6 m with six workin
10、g cycles per day, and the advance of a working cycle is 3.6 m and the advance is 108 m per month.Main roadway makes use of belt conveyor to transport coal resource, the xiliary haulage uses the wire laying type electric locomotive to tow the 1.5t fixed box-type mine car transportation.The monographi
11、c study is a brief analysis of behavior law of mine pressure of gob-side entry bolting with wire mesh.This paper has discussed the overlying strata structure of gob-side entry and the law of both surrounding rock stress distribution and surrounding rock deformation.By finishing and analysising the d
12、ata from worksite, summarized the behavior law of mine pressure of gob-side entry with similar geological conditions to direct the support design for gob-side entry.The translated part is under a building resembles the paste body backfill to mine the new craft the discussion paper, English topic is

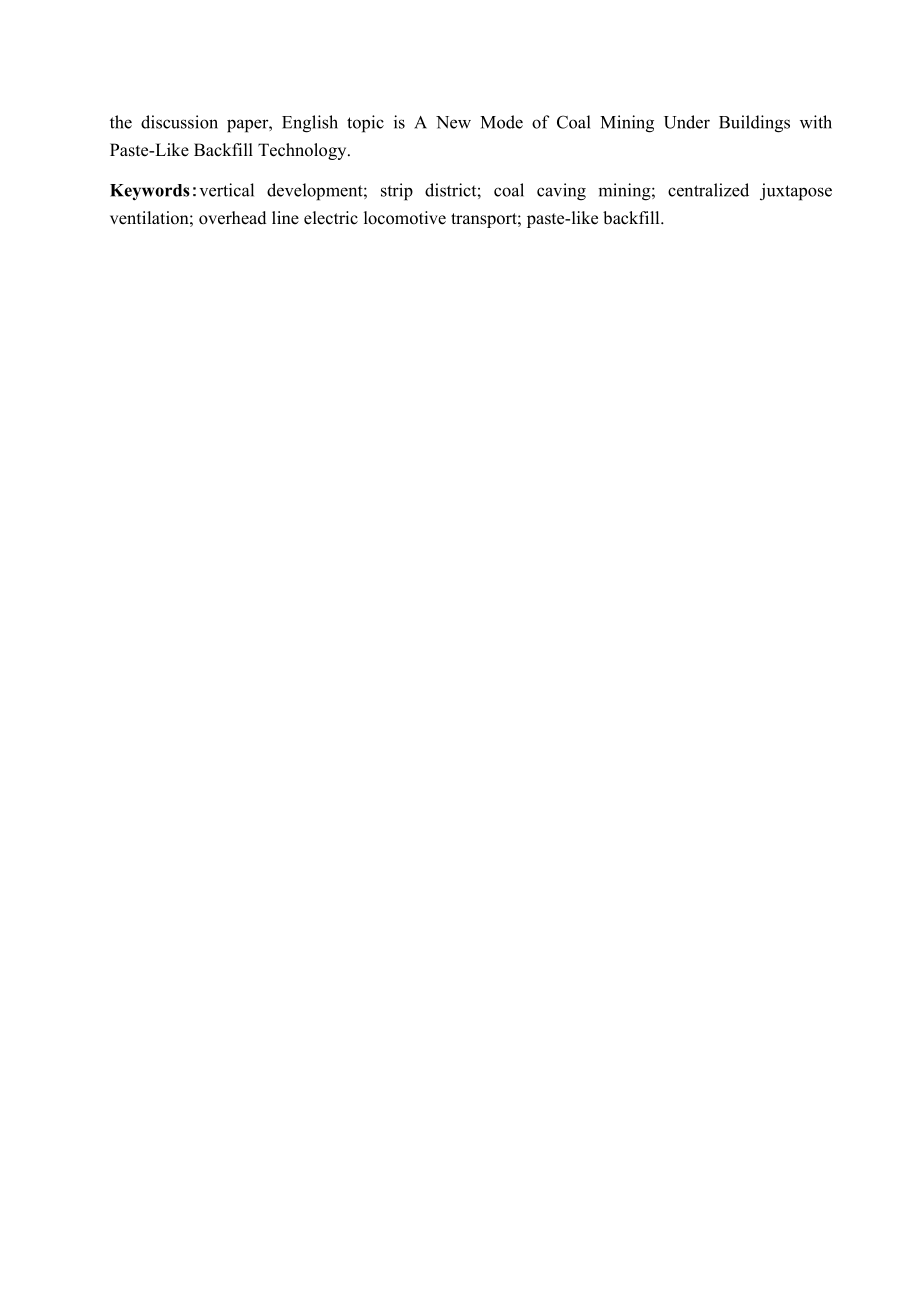

13、A New Mode of Coal Mining Under Buildings with Paste-Like Backfill Technology.Keywords:vertical development; strip district; coal caving mining; centralized juxtapose ventilation; overhead line electric locomotive transport; paste-like backfill.目 录一般设计部分1 矿区概述及井田地质特征11.1矿区概述11.1.1交通位置11.1.2地形、地貌11.1
14、.3河流及水体11.1.4气象地震11.1.5矿区经济概况11.1.6水源及电源11.2井田地质特征21.2.1井田地质构造21.2.2地层31.2.3水文地质41.2.4地质勘探程度71.3煤层特征81.3.1煤层81.3.2煤层顶底板91.3.3煤质91.3.4瓦斯111.3.5煤尘121.3.6煤的自燃121.3.7地温122 井田境界和储量132.1井田境界132.1.1井田范围132.1.2开采界限132.1.3井田尺寸132.2矿井储量132.2.1储量计算基础132.2.2安全煤柱留设原则132.2.3矿井地质储量142.2.4矿井工业储量计算162.2.5矿井设计储量162.2
15、.6矿井设计可采储量163 矿井工作制度、设计生产能力及服务年限193.1矿井工作制度193.2矿井设计生产能力及服务年限193.2.1确定依据193.2.2矿井设计生产能力193.2.3矿井服务年限193.2.4井型校核204 井田开拓214.1井田开拓的基本问题214.1.1确定井筒形式、数目、位置及坐标214.1.2工业场地的位置224.1.3开采水平的确定及采盘区划分224.1.4主要开拓巷道224.1.5方案比较234.2矿井基本巷道284.2.1井筒284.2.2井底车场及硐室314.2.3主要开拓巷道335 准备方式带区巷道布置385.1煤层地质特征385.1.1带区位置385.1.2带区煤层特征385.1.3煤层顶底板岩石构造情况385.1.4水文地质385.1.5地质构造385.2带区巷道布置及生产系统385.2.1带区准备方式的确定385.2.2带区巷道布置395.2.3带区生产系统395.2.4带区内巷道掘进方法415.2.5带区生产能力及采出率425.3带区车场选型设计436 采煤方法446.1采煤工艺方式446.1.1带区煤层特征及地质条件446.1.2确定采煤工艺方式446.1.3回采工作面参数45
