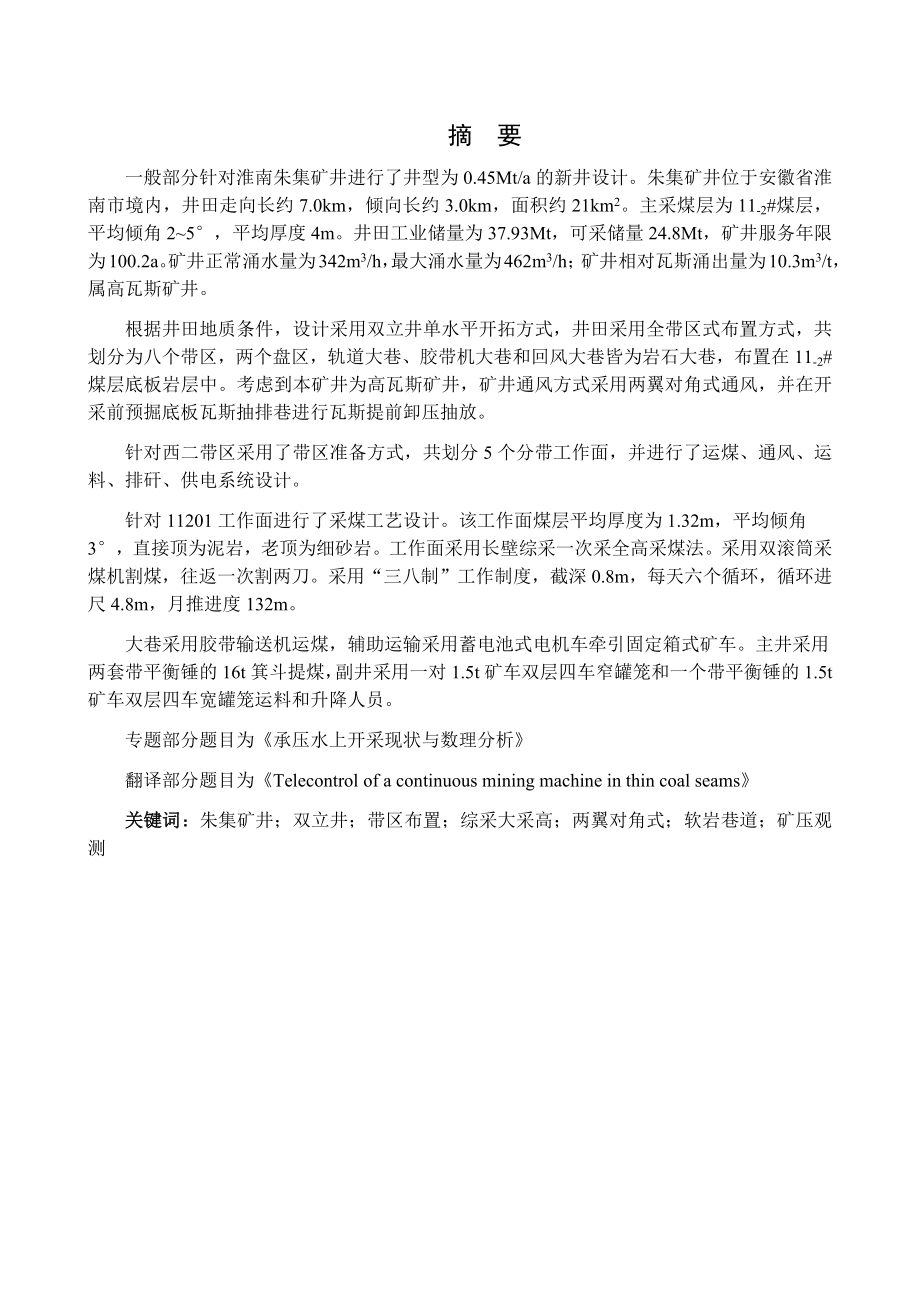

1、摘 要一般部分针对淮南朱集矿井进行了井型为0.45Mt/a的新井设计。朱集矿井位于安徽省淮南市境内，井田走向长约7.0km，倾向长约3.0km，面积约21km2。主采煤层为11-2#煤层，平均倾角25，平均厚度4m。井田工业储量为37.93Mt，可采储量24.8Mt，矿井服务年限为100.2a。矿井正常涌水量为342m3/h，最大涌水量为462m3/h；矿井相对瓦斯涌出量为10.3m3/t，属高瓦斯矿井。根据井田地质条件，设计采用双立井单水平开拓方式，井田采用全带区式布置方式，共划分为八个带区，两个盘区，轨道大巷、胶带机大巷和回风大巷皆为岩石大巷，布置在11-2#煤层底板岩层中。考虑到本矿井为
2、高瓦斯矿井，矿井通风方式采用两翼对角式通风，并在开采前预掘底板瓦斯抽排巷进行瓦斯提前卸压抽放。 针对西二带区采用了带区准备方式，共划分5个分带工作面，并进行了运煤、通风、运料、排矸、供电系统设计。针对11201工作面进行了采煤工艺设计。该工作面煤层平均厚度为1.32m，平均倾角3，直接顶为泥岩，老顶为细砂岩。工作面采用长壁综采一次采全高采煤法。采用双滚筒采煤机割煤，往返一次割两刀。采用“三八制”工作制度，截深0.8m，每天六个循环，循环进尺4.8m，月推进度132m。大巷采用胶带输送机运煤，辅助运输采用蓄电池式电机车牵引固定箱式矿车。主井采用两套带平衡锤的16t箕斗提煤，副井采用一对1.5t矿

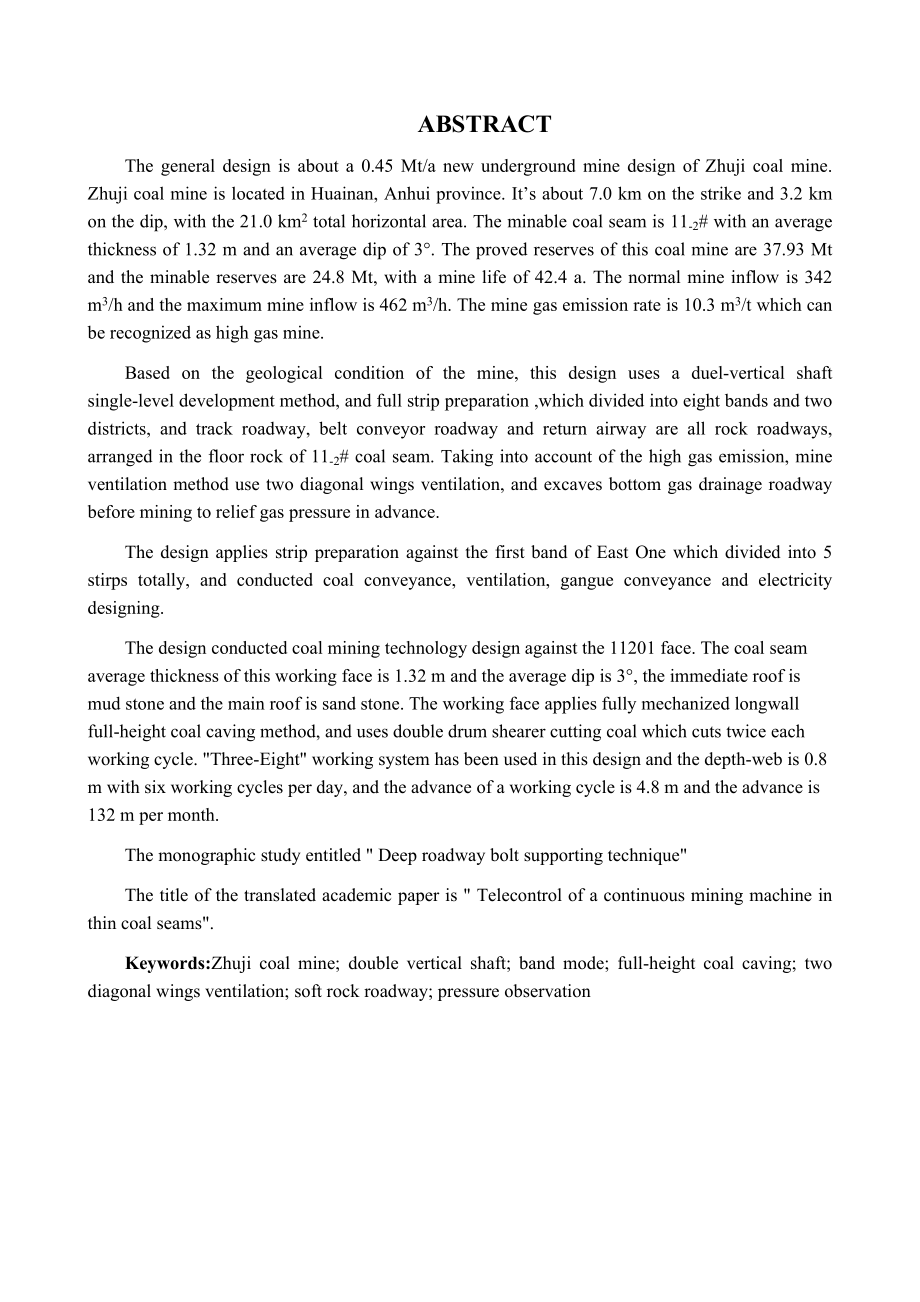

3、车双层四车窄罐笼和一个带平衡锤的1.5t矿车双层四车宽罐笼运料和升降人员。专题部分题目为承压水上开采现状与数理分析翻译部分题目为Telecontrol of a continuous mining machine in thin coal seams关键词：朱集矿井；双立井；带区布置；综采大采高；两翼对角式；软岩巷道；矿压观测ABSTRACTThe general design is about a 0.45 Mt/a new underground mine design of Zhuji coal mine. Zhuji coal mine is located in Huainan, A
4、nhui province. Its about 7.0 km on the strike and 3.2 km on the dip, with the 21.0 km2 total horizontal area. The minable coal seam is 11-2# with an average thickness of 1.32 m and an average dip of 3. The proved reserves of this coal mine are 37.93 Mt and the minable reserves are 24.8 Mt, with a mi
5、ne life of 42.4 a. The normal mine inflow is 342 m3/h and the maximum mine inflow is 462 m3/h. The mine gas emission rate is 10.3 m3/t which can be recognized as high gas mine. Based on the geological condition of the mine, this design uses a duel-vertical shaft single-level development method, and
6、full strip preparation ,which divided into eight bands and two districts, and track roadway, belt conveyor roadway and return airway are all rock roadways, arranged in the floor rock of 11-2# coal seam. Taking into account of the high gas emission, mine ventilation method use two diagonal wings vent
7、ilation, and excaves bottom gas drainage roadway before mining to relief gas pressure in advance.The design applies strip preparation against the first band of East One which divided into 5 stirps totally, and conducted coal conveyance, ventilation, gangue conveyance and electricity designing.The de
8、sign conducted coal mining technology design against the 11201 face. The coal seam average thickness of this working face is 1.32 m and the average dip is 3, the immediate roof is mud stone and the main roof is sand stone. The working face applies fully mechanized longwall full-height coal caving me
9、thod, and uses double drum shearer cutting coal which cuts twice each working cycle. Three-Eight working system has been used in this design and the depth-web is 0.8 m with six working cycles per day, and the advance of a working cycle is 4.8 m and the advance is 132 m per month.The monographic stud
10、y entitled Deep roadway bolt supporting technique The title of the translated academic paper is Telecontrol of a continuous mining machine in thin coal seams.Keywords:Zhuji coal mine; double vertical shaft; band mode; full-height coal caving; two diagonal wings ventilation; soft rock roadway; pressu

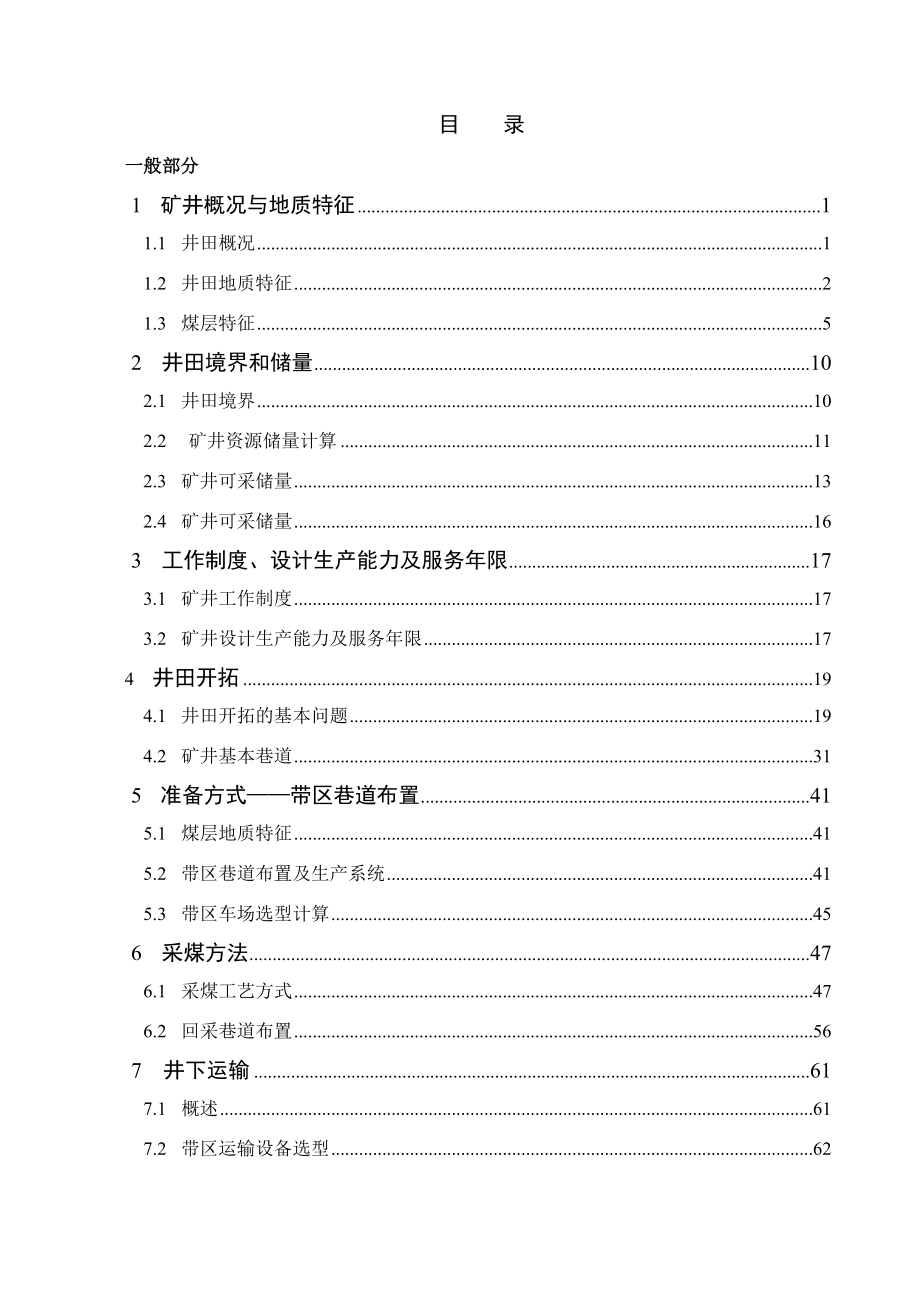

11、re observation目 录一般部分1 矿井概况与地质特征11.1 井田概况11.2 井田地质特征21.3 煤层特征52 井田境界和储量102.1 井田境界102.2 矿井资源储量计算112.3 矿井可采储量132.4 矿井可采储量163 工作制度、设计生产能力及服务年限173.1 矿井工作制度173.2 矿井设计生产能力及服务年限174 井田开拓194.1 井田开拓的基本问题194.2 矿井基本巷道315 准备方式带区巷道布置415.1 煤层地质特征415.2 带区巷道布置及生产系统415.3 带区车场选型计算456 采煤方法476.1 采煤工艺方式476.2 回采巷道布置567 井下
12、运输617.1 概述617.2 带区运输设备选型627.3 大巷运输设备选型658 矿井提升678.1 矿井提升概述678.2 主副井提升679 矿井通风及安全719.1 矿井通风系统选择719.2 带区及全矿所需风量779.3 全矿通风阻力的计算819.4 矿井通风设备选型849.5 防治特殊灾害的安全措施8910 设计矿井基本技术经济指标92参考文献94专题部分承压水上开采现状与数理分析951 绪论951.1 问题的提出951.2 研究意义962 国内外研究现状972.1 国内研究现状972.2 国外研究现状1002.3 煤层底板突水研究基本理论1012.4 底板隔水岩层破坏深度及破坏形态
13、的方法研究1032.5 煤层底板突水的可监测性1053 煤层底板突水机理研究1063.1 承压水上采煤突水类型1063.2 底板突水机理分析1084 煤层底板突水问题研究中存在的问题及展望1124.1 煤层底板突水问题研究存在的问题1124.2 煤层底板突水问题研究展望1145 数值模拟研究1155.1 底板承压水上采煤的流固藕合差分计算原理1155.2 条带法在底板承压水上采煤中应用的算例分析1166 结论118参考文献119翻译部分英文原文120TELECONTROL OF A CONTINUOUS MINING MACHINE IN THIN COAL SEAMS1201 INTRODU
14、CTION1202 PREVIOUS WORK1213 TELEOPERATED THIN-SEAM DEEP MINING SYSTEM1224 TTDS EQUIPMENT1225 MACHINE CONTROL SOFTWARE1236 OPERATOR INTERFACE SOFTWARE1247 SURFACE EVALUATION1258 CONCLUSIONS127中文译文128遥控连续采矿机在薄煤层中的应用1281 引言1282 以前的工作1283 遥控轮式薄煤层深部开采系统1304 遥控轮式薄煤层深部开采系统设备1305 机器控制软件1316 操作员接口软件1327 浅评1338 结论133致 谢134 第166错误！不能识别的开关参数。页1 矿井概况与地质特征1.1 井田概况1.1.1 位置与交通朱集东井田属朱集井田27勘探线以东部分，位于安徽省淮南市潘集区与怀远县交界处的武前庄与骑龙庄一带，行政区划隶属淮南市潘集区和怀远县，井田东南距淮南市洞山约38km,地理坐标:东经11645001165345，北纬325015325430。井田东西长约7.0km，南北宽约3.0km，面积21km2。本井田内陆路交通较为便利。南邻潘集矿区，有淮阜铁路穿过，西至阜阳与京九线连接；公路经潘集镇，可达蚌埠、阜阳、徐州、合肥等地；北部有茨怀新河可以通航，可连接淮河航运，
