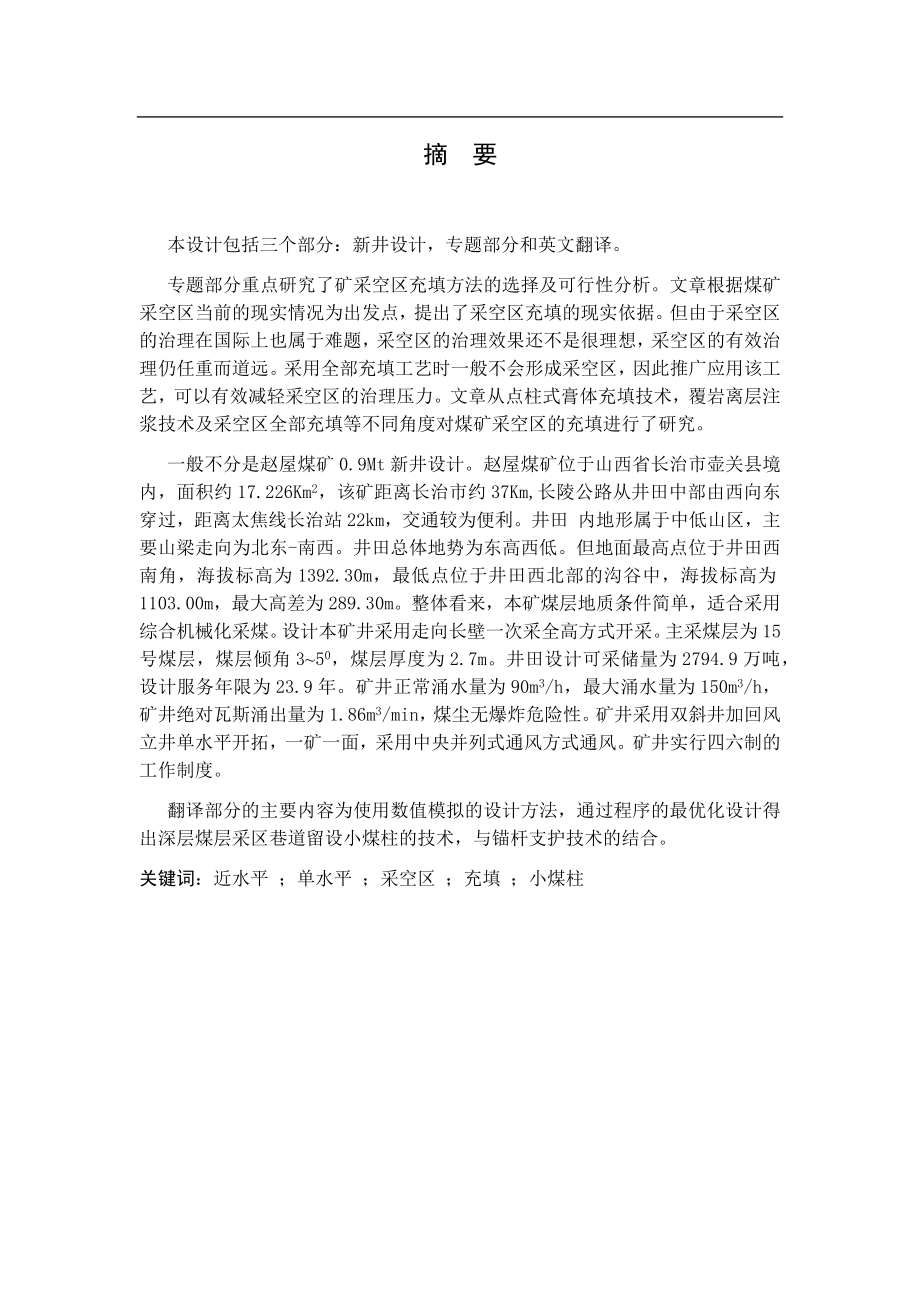

1、 摘 要本设计包括三个部分：新井设计，专题部分和英文翻译。专题部分重点研究了矿采空区充填方法的选择及可行性分析。文章根据煤矿采空区当前的现实情况为出发点，提出了采空区充填的现实依据。但由于采空区的治理在国际上也属于难题，采空区的治理效果还不是很理想，采空区的有效治理仍任重而道远。采用全部充填工艺时一般不会形成采空区，因此推广应用该工艺，可以有效减轻采空区的治理压力。文章从点柱式膏体充填技术，覆岩离层注浆技术及采空区全部充填等不同角度对煤矿采空区的充填进行了研究。 一般不分是赵屋煤矿0.9Mt新井设计。赵屋煤矿位于山西省长治市壶关县境内，面积约17.226Km2，该矿距离长治市约37Km,长陵公
2、路从井田中部由西向东穿过，距离太焦线长治站22km，交通较为便利。井田 内地形属于中低山区，主要山梁走向为北东-南西。井田总体地势为东高西低。但地面最高点位于井田西南角，海拔标高为1392.30m，最低点位于井田西北部的沟谷中，海拔标高为1103.00m，最大高差为289.30m。整体看来，本矿煤层地质条件简单，适合采用综合机械化采煤。设计本矿井采用走向长壁一次采全高方式开采。主采煤层为15号煤层，煤层倾角350，煤层厚度为2.7m。井田设计可采储量为2794.9万吨，设计服务年限为23.9年。矿井正常涌水量为90m3/h，最大涌水量为150m3/h，矿井绝对瓦斯涌出量为1.86m3/min，

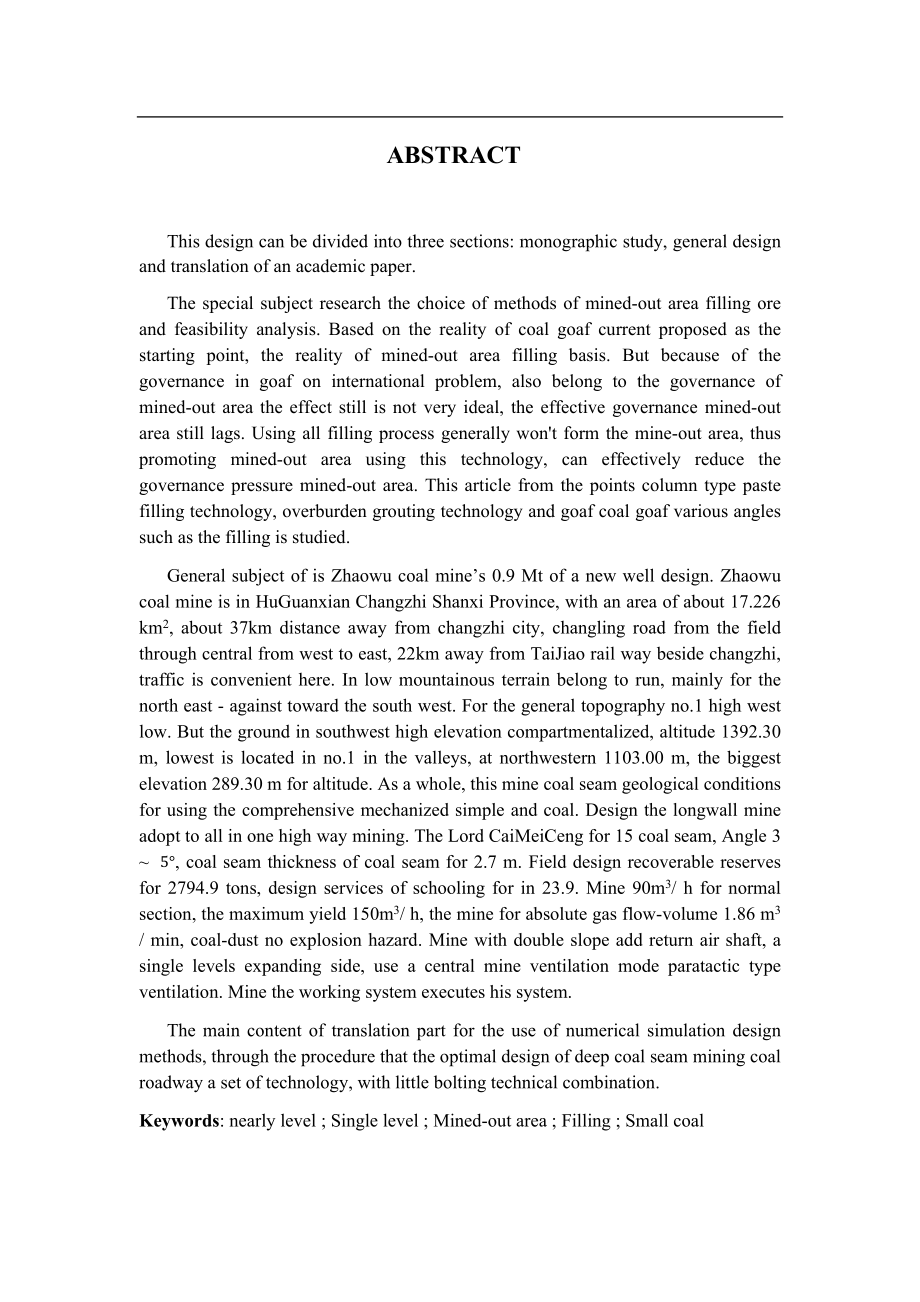

3、煤尘无爆炸危险性。矿井采用双斜井加回风立井单水平开拓，一矿一面，采用中央并列式通风方式通风。矿井实行四六制的工作制度。 翻译部分的主要内容为使用数值模拟的设计方法，通过程序的最优化设计得出深层煤层采区巷道留设小煤柱的技术，与锚杆支护技术的结合。关键词：近水平 ；单水平 ；采空区 ；充填 ；小煤柱ABSTRACTThis design can be divided into three sections: monographic study, general design and translation of an academic paper.The special subject resea
4、rch the choice of methods of mined-out area filling ore and feasibility analysis. Based on the reality of coal goaf current proposed as the starting point, the reality of mined-out area filling basis. But because of the governance in goaf on international problem, also belong to the governance of mi
5、ned-out area the effect still is not very ideal, the effective governance mined-out area still lags. Using all filling process generally wont form the mine-out area, thus promoting mined-out area using this technology, can effectively reduce the governance pressure mined-out area. This article from
6、the points column type paste filling technology, overburden grouting technology and goaf coal goaf various angles such as the filling is studied.General subject of is Zhaowu coal mines 0.9 Mt of a new well design. Zhaowu coal mine is in HuGuanxian Changzhi Shanxi Province, with an area of about 17.2
7、26 km2, about 37km distance away from changzhi city, changling road from the field through central from west to east, 22km away from TaiJiao rail way beside changzhi, traffic is convenient here. In low mountainous terrain belong to run, mainly for the north east - against toward the south west. For
8、the general topography no.1 high west low. But the ground in southwest high elevation compartmentalized, altitude 1392.30 m, lowest is located in no.1 in the valleys, at northwestern 1103.00 m, the biggest elevation 289.30 m for altitude. As a whole, this mine coal seam geological conditions for usi
9、ng the comprehensive mechanized simple and coal. Design the longwall mine adopt to all in one high way mining. The Lord CaiMeiCeng for 15 coal seam, Angle 3 5, coal seam thickness of coal seam for 2.7 m. Field design recoverable reserves for 2794.9 tons, design services of schooling for in 23.9. Min
10、e 90m3/ h for normal section, the maximum yield 150m3/ h, the mine for absolute gas flow-volume 1.86 m3 / min, coal-dust no explosion hazard. Mine with double slope add return air shaft, a single levels expanding side, use a central mine ventilation mode paratactic type ventilation. Mine the working
11、 system executes his system.The main content of translation part for the use of numerical simulation design methods, through the procedure that the optimal design of deep coal seam mining coal roadway a set of technology, with little bolting technical combination.Keywords: nearly level ; Single leve
