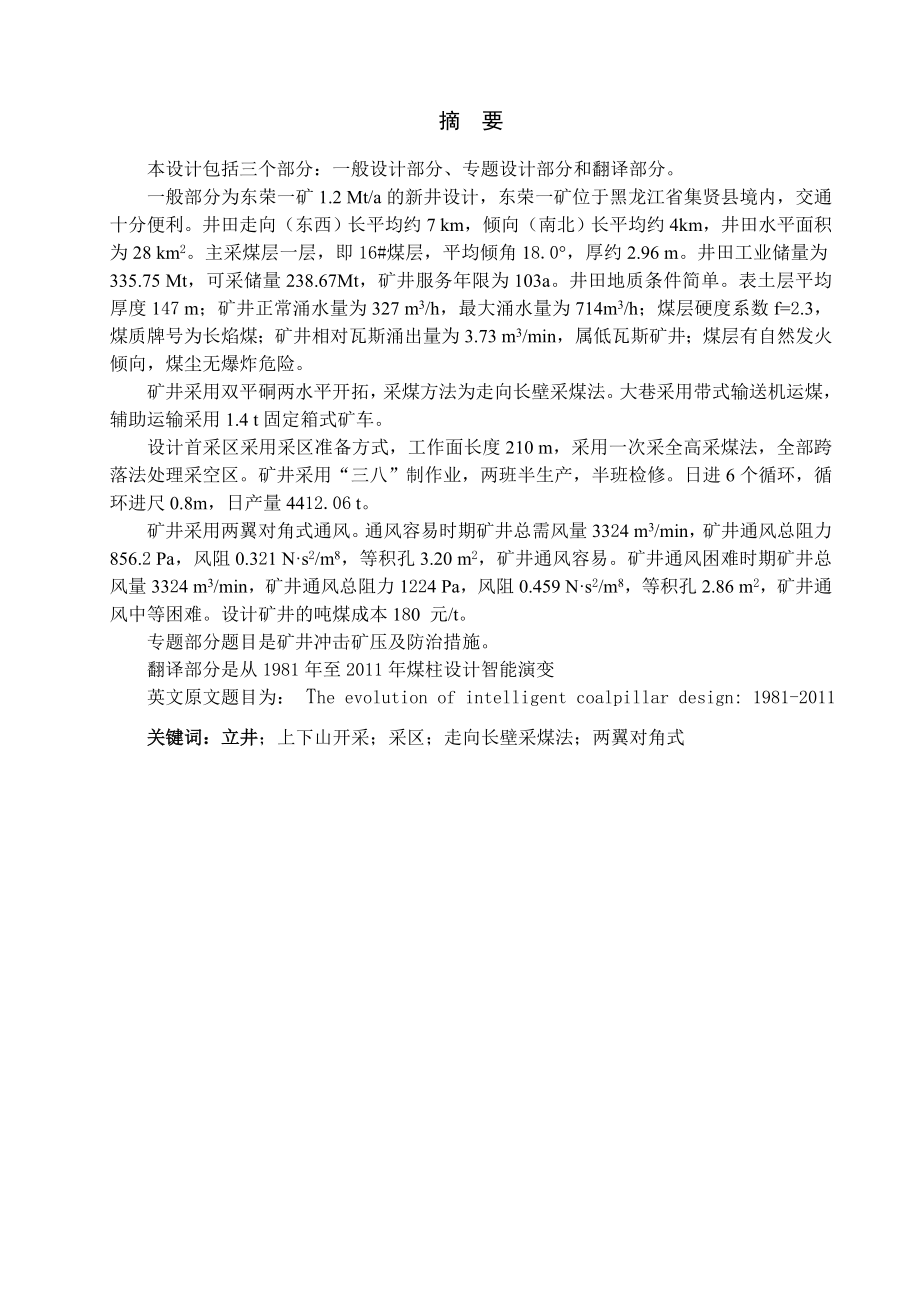

1、摘 要本设计包括三个部分：一般设计部分、专题设计部分和翻译部分。一般部分为东荣一矿1.2 Mt/a的新井设计，东荣一矿位于黑龙江省集贤县境内，交通十分便利。井田走向（东西）长平均约7 km，倾向（南北）长平均约4km，井田水平面积为28 km2。主采煤层一层，即16#煤层，平均倾角18.0，厚约2.96 m。井田工业储量为335.75 Mt，可采储量238.67Mt，矿井服务年限为103a。井田地质条件简单。表土层平均厚度147 m；矿井正常涌水量为327 m3/h，最大涌水量为714m3/h；煤层硬度系数f=2.3，煤质牌号为长焰煤；矿井相对瓦斯涌出量为3.73 m3/min，属低瓦斯矿井；
2、煤层有自然发火倾向，煤尘无爆炸危险。矿井采用双平硐两水平开拓，采煤方法为走向长壁采煤法。大巷采用带式输送机运煤，辅助运输采用1.4 t固定箱式矿车。设计首采区采用采区准备方式，工作面长度210 m，采用一次采全高采煤法，全部跨落法处理采空区。矿井采用“三八”制作业，两班半生产，半班检修。日进6个循环，循环进尺0.8m，日产量4412.06 t。矿井采用两翼对角式通风。通风容易时期矿井总需风量3324 m3/min，矿井通风总阻力856.2 Pa，风阻0.321 Ns2/m8，等积孔3.20 m2，矿井通风容易。矿井通风困难时期矿井总风量3324 m3/min，矿井通风总阻力1224 Pa，风阻
3、0.459 Ns2/m8，等积孔2.86 m2，矿井通风中等困难。设计矿井的吨煤成本180 元/t。专题部分题目是矿井冲击矿压及防治措施。翻译部分是从1981年至2011年煤柱设计智能演变英文原文题目为： The evolution of intelligent coalpillar design: 1981-2011关键词：立井；上下山开采；采区；走向长壁采煤法；两翼对角式ABSTRACTThis design can be divided into three sections: general design, monographic study and translation of an

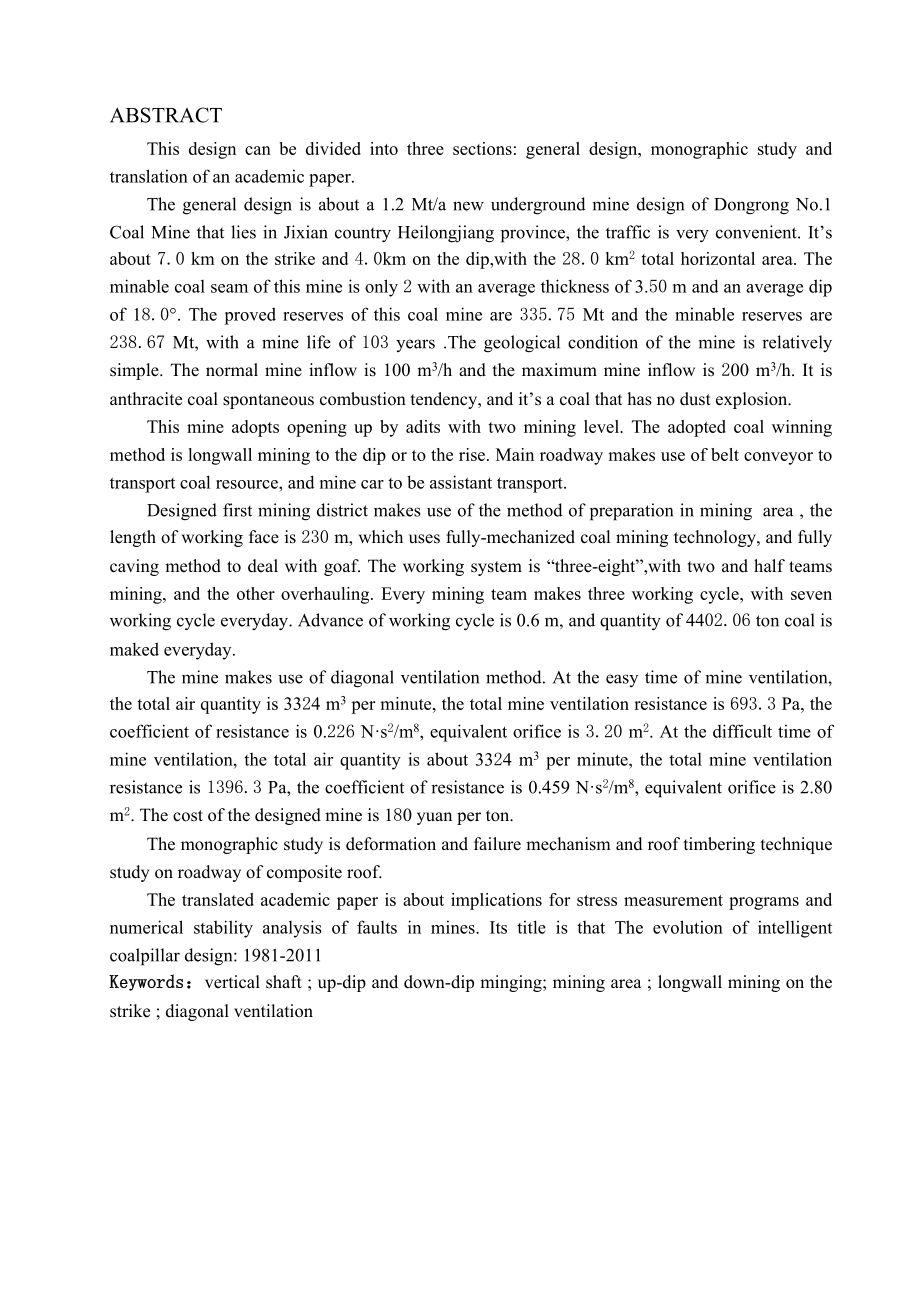

4、 academic paper.The general design is about a 1.2 Mt/a new underground mine design of Dongrong No.1 Coal Mine that lies in Jixian country Heilongjiang province, the traffic is very convenient. Its about 7.0 km on the strike and 4.0km on the dip,with the 28.0 km2 total horizontal area. The minable co
5、al seam of this mine is only 2 with an average thickness of 3.50 m and an average dip of 18.0. The proved reserves of this coal mine are 335.75 Mt and the minable reserves are 238.67 Mt, with a mine life of 103 years .The geological condition of the mine is relatively simple. The normal mine inflow
6、is 100 m3/h and the maximum mine inflow is 200 m3/h. It is anthracite coal spontaneous combustion tendency, and its a coal that has no dust explosion.This mine adopts opening up by adits with two mining level. The adopted coal winning method is longwall mining to the dip or to the rise. Main roadway
7、 makes use of belt conveyor to transport coal resource, and mine car to be assistant transport.Designed first mining district makes use of the method of preparation in mining area , the length of working face is 230 m, which uses fully-mechanized coal mining technology, and fully caving method to de
8、al with goaf. The working system is “three-eight”,with two and half teams mining, and the other overhauling. Every mining team makes three working cycle, with seven working cycle everyday. Advance of working cycle is 0.6 m, and quantity of 4402.06 ton coal is maked everyday.The mine makes use of dia
9、gonal ventilation method. At the easy time of mine ventilation, the total air quantity is 3324 m3 per minute, the total mine ventilation resistance is 693.3 Pa, the coefficient of resistance is 0.226 Ns2/m8, equivalent orifice is 3.20 m2. At the difficult time of mine ventilation, the total air quan
10、tity is about 3324 m3 per minute, the total mine ventilation resistance is 1396.3 Pa, the coefficient of resistance is 0.459 Ns2/m8, equivalent orifice is 2.80 m2. The cost of the designed mine is 180 yuan per ton.The monographic study is deformation and failure mechanism and roof timbering techniqu
11、e study on roadway of composite roof.The translated academic paper is about implications for stress measurement programs and numerical stability analysis of faults in mines. Its title is that The evolution of intelligent coalpillar design: 1981-2011Keywords：vertical shaft ; up-dip and down-dip mingi

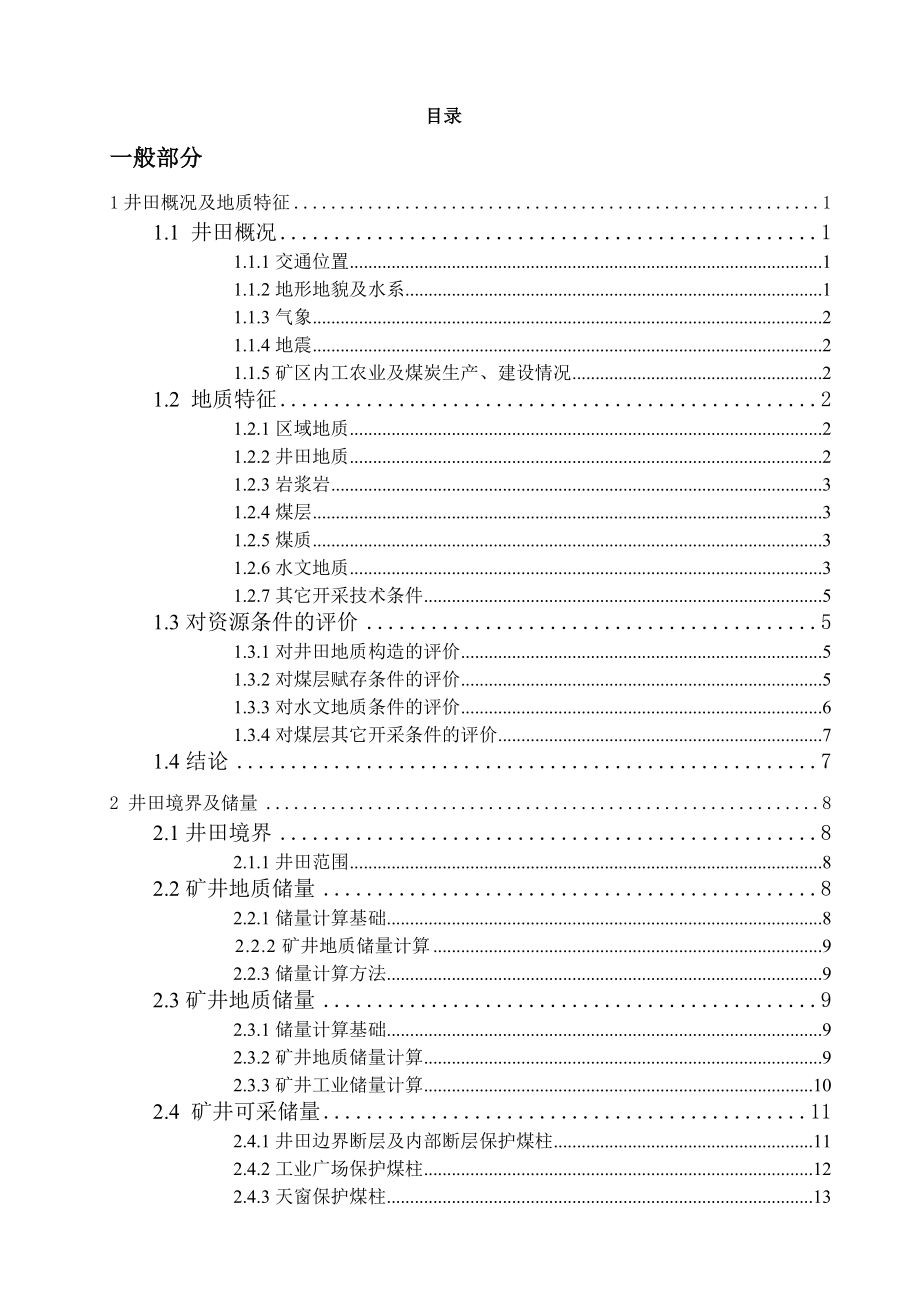

12、ng; mining area ; longwall mining on the strike ; diagonal ventilation 目录一般部分1井田概况及地质特征11.1 井田概况11.1.1交通位置11.1.2地形地貌及水系11.1.3气象21.1.4地震21.1.5矿区内工农业及煤炭生产、建设情况21.2 地质特征21.2.1区域地质21.2.2井田地质21.2.3岩浆岩31.2.4煤层31.2.5煤质31.2.6水文地质31.2.7其它开采技术条件51.3对资源条件的评价51.3.1对井田地质构造的评价51.3.2对煤层赋存条件的评价51.3.3对水文地质条件的评价61.3.
