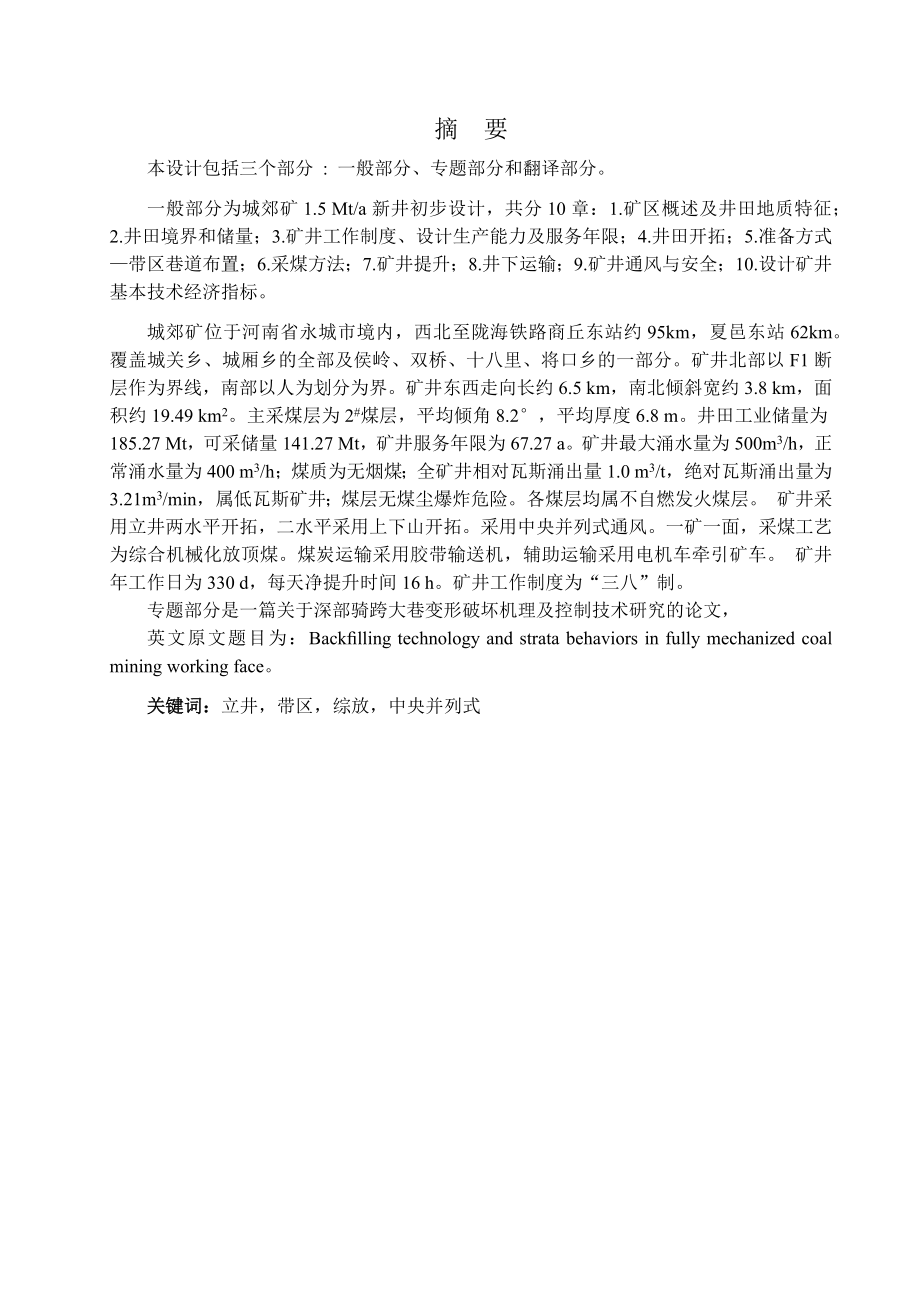

1、摘 要本设计包括三个部分 : 一般部分、专题部分和翻译部分。一般部分为城郊矿1.5 Mt/a新井初步设计，共分10章：1.矿区概述及井田地质特征；2.井田境界和储量；3.矿井工作制度、设计生产能力及服务年限；4.井田开拓；5.准备方式带区巷道布置；6.采煤方法；7.矿井提升；8.井下运输；9.矿井通风与安全；10.设计矿井基本技术经济指标。城郊矿位于河南省永城市境内，西北至陇海铁路商丘东站约95km，夏邑东站62km。覆盖城关乡、城厢乡的全部及侯岭、双桥、十八里、将口乡的一部分。矿井北部以F1断层作为界线，南部以人为划分为界。矿井东西走向长约6.5 km，南北倾斜宽约3.8 km，面积约19.
2、49 km2。主采煤层为2#煤层，平均倾角8.2，平均厚度6.8 m。井田工业储量为185.27 Mt，可采储量141.27 Mt，矿井服务年限为67.27 a。矿井最大涌水量为500m3/h，正常涌水量为400 m3/h；煤质为无烟煤；全矿井相对瓦斯涌出量1.0 m3/t，绝对瓦斯涌出量为3.21m3/min，属低瓦斯矿井；煤层无煤尘爆炸危险。各煤层均属不自燃发火煤层。 矿井采用立井两水平开拓，二水平采用上下山开拓。采用中央并列式通风。一矿一面，采煤工艺为综合机械化放顶煤。煤炭运输采用胶带输送机，辅助运输采用电机车牵引矿车。 矿井年工作日为330 d，每天净提升时间16 h。矿井工作制度为“

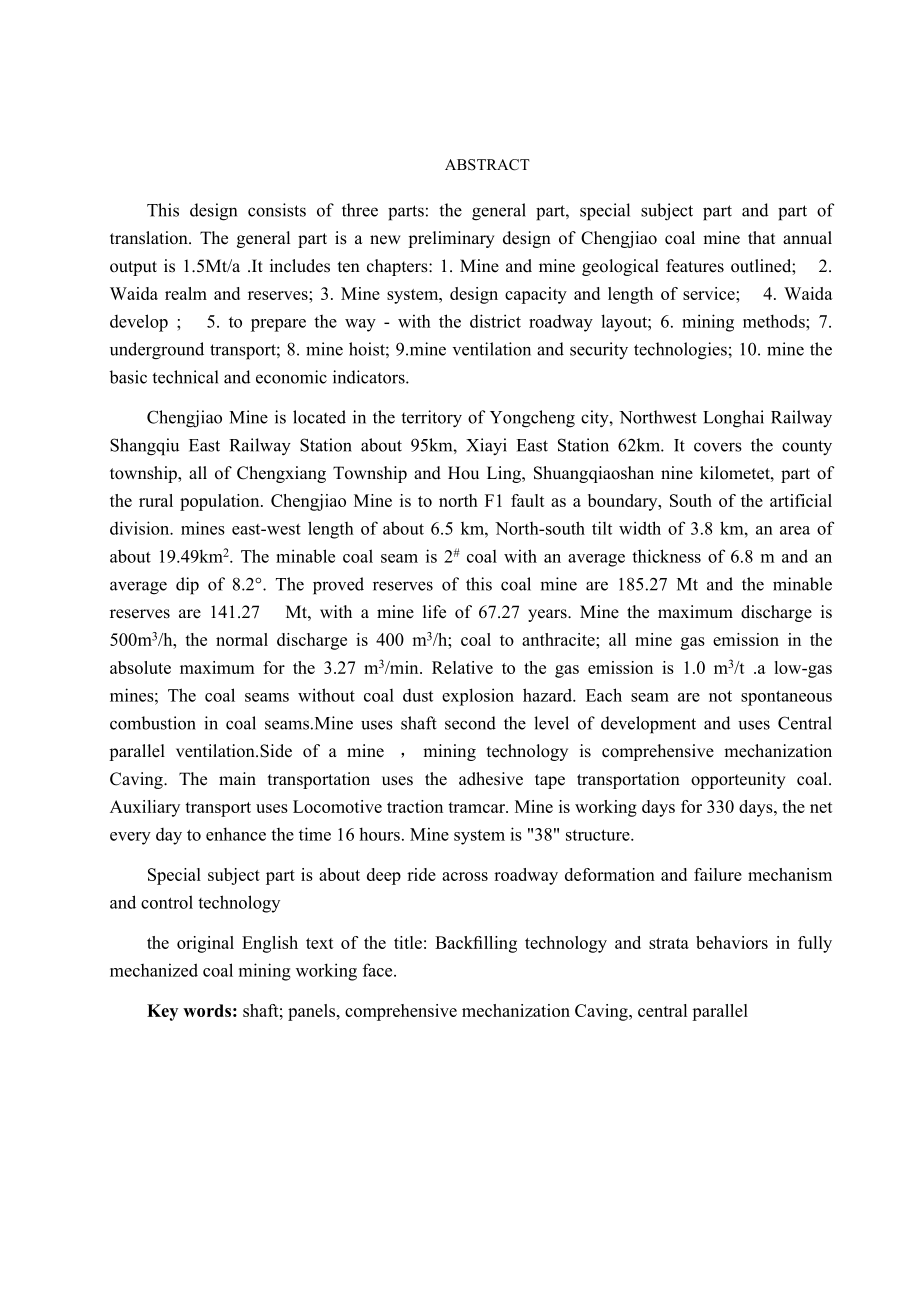

3、三八”制。 专题部分是一篇关于深部骑跨大巷变形破坏机理及控制技术研究的论文， 英文原文题目为：Backlling technology and strata behaviors in fully mechanized coal mining working face。 关键词：立井，带区，综放，中央并列式 ABSTRACTThis design consists of three parts: the general part, special subject part and part of translation. The general part is a new preliminary
4、 design of Chengjiao coal mine that annual output is 1.5Mt/a .It includes ten chapters: 1. Mine and mine geological features outlined; 2. Waida realm and reserves; 3. Mine system, design capacity and length of service; 4. Waida develop ; 5. to prepare the way - with the district roadway layout; 6. m
5、ining methods; 7. underground transport; 8. mine hoist; 9.mine ventilation and security technologies; 10. mine the basic technical and economic indicators. Chengjiao Mine is located in the territory of Yongcheng city, Northwest Longhai Railway Shangqiu East Railway Station about 95km, Xiayi East Sta
6、tion 62km. It covers the county township, all of Chengxiang Township and Hou Ling, Shuangqiaoshan nine kilometet, part of the rural population. Chengjiao Mine is to north F1 fault as a boundary, South of the artificial division. mines east-west length of about 6.5 km, North-south tilt width of 3.8 k
7、m, an area of about 19.49km2. The minable coal seam is 2# coal with an average thickness of 6.8 m and an average dip of 8.2. The proved reserves of this coal mine are 185.27 Mt and the minable reserves are 141.27 Mt, with a mine life of 67.27 years. Mine the maximum discharge is 500m3/h, the normal
8、discharge is 400 m3/h; coal to anthracite; all mine gas emission in the absolute maximum for the 3.27 m3/min. Relative to the gas emission is 1.0 m3/t .a low-gas mines; The coal seams without coal dust explosion hazard. Each seam are not spontaneous combustion in coal seams.Mine uses shaft second th
9、e level of development and uses Central parallel ventilation.Side of a mine ，mining technology is comprehensive mechanization Caving. The main transportation uses the adhesive tape transportation opporteunity coal. Auxiliary transport uses Locomotive traction tramcar. Mine is working days for 330 da
10、ys, the net every day to enhance the time 16 hours. Mine system is 38 structure. Special subject part is about deep ride across roadway deformation and failure mechanism and control technologythe original English text of the title: Backlling technology and strata behaviors in fully mechanized coal m
11、ining working face. Key words: shaft; panels, comprehensive mechanization Caving, central parallel目 录一 般 部 分11 矿区概述及井田地质特征21.1矿区概述21.1.1矿区地理位置与交通21.1.2矿区居民 ，经济，资源供应条件21.1.3地形地貌21.1.4主要河流31.2井田地质特征31.2.1煤系地层31.2.2地质构造61.2.3水文地质条件61.3煤层特征71.3.1煤质81.3.2其它开采地质条件122 井田境界与储量132.1井田境界132.2矿井工业储量计算132.2.1储量
