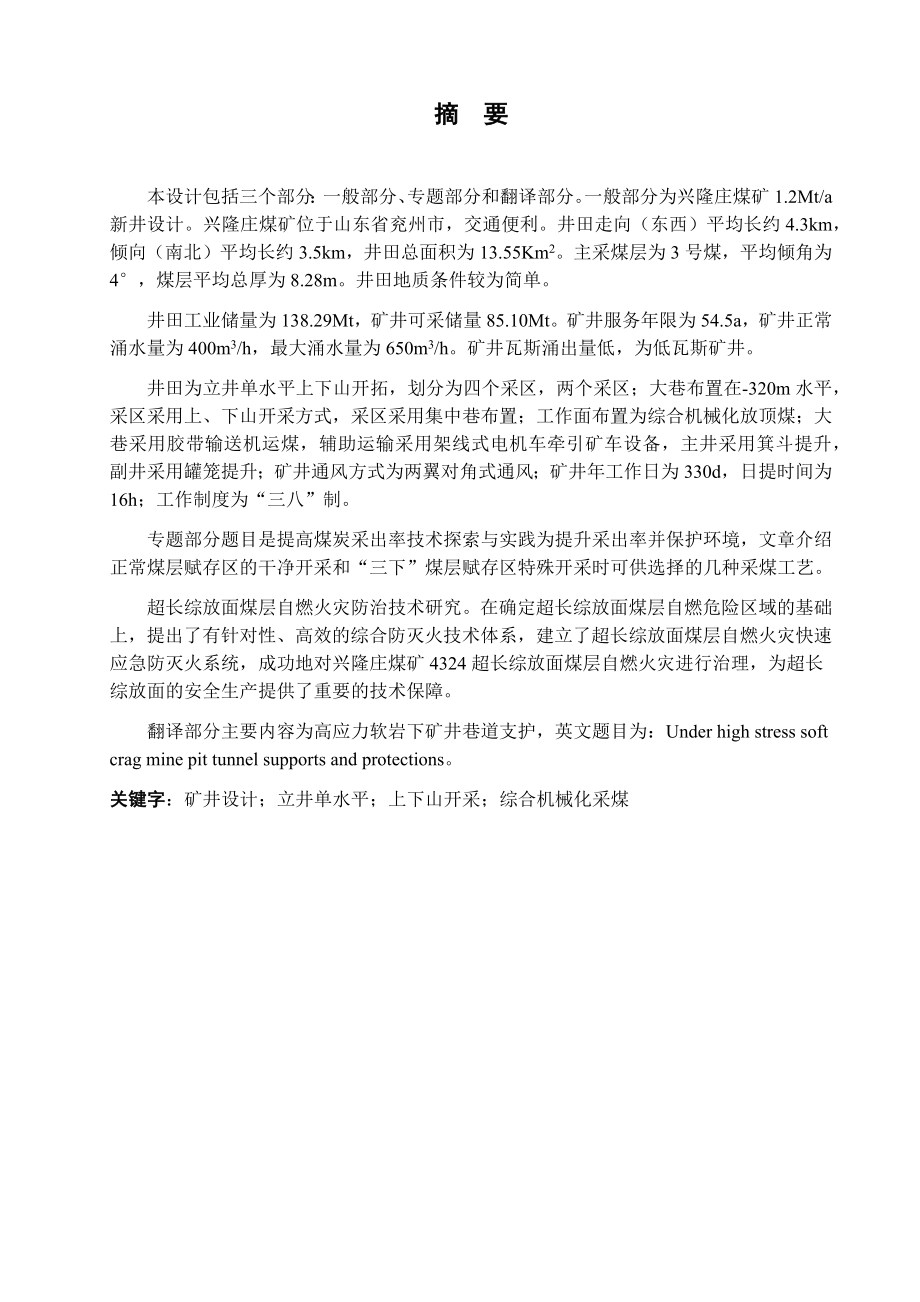

1、摘 要本设计包括三个部分：一般部分、专题部分和翻译部分。一般部分为兴隆庄煤矿1.2Mt/a新井设计。兴隆庄煤矿位于山东省兖州市，交通便利。井田走向（东西）平均长约4.3km，倾向（南北）平均长约3.5km，井田总面积为13.55Km2。主采煤层为3号煤，平均倾角为4，煤层平均总厚为8.28m。井田地质条件较为简单。井田工业储量为138.29Mt，矿井可采储量85.10Mt。矿井服务年限为54.5a，矿井正常涌水量为400m3/h，最大涌水量为650m3/h。矿井瓦斯涌出量低，为低瓦斯矿井。井田为立井单水平上下山开拓，划分为四个采区，两个采区；大巷布置在-320m水平，采区采用上、下山开采方式，
2、采区采用集中巷布置；工作面布置为综合机械化放顶煤；大巷采用胶带输送机运煤，辅助运输采用架线式电机车牵引矿车设备，主井采用箕斗提升，副井采用罐笼提升；矿井通风方式为两翼对角式通风；矿井年工作日为330d，日提时间为16h；工作制度为“三八”制。专题部分题目是提高煤炭采出率技术探索与实践为提升采出率并保护环境，文章介绍正常煤层赋存区的干净开采和“三下”煤层赋存区特殊开采时可供选择的几种采煤工艺。超长综放面煤层自燃火灾防治技术研究。在确定超长综放面煤层自燃危险区域的基础上，提出了有针对性、高效的综合防灭火技术体系，建立了超长综放面煤层自燃火灾快速应急防灭火系统，成功地对兴隆庄煤矿4324超长综放面煤

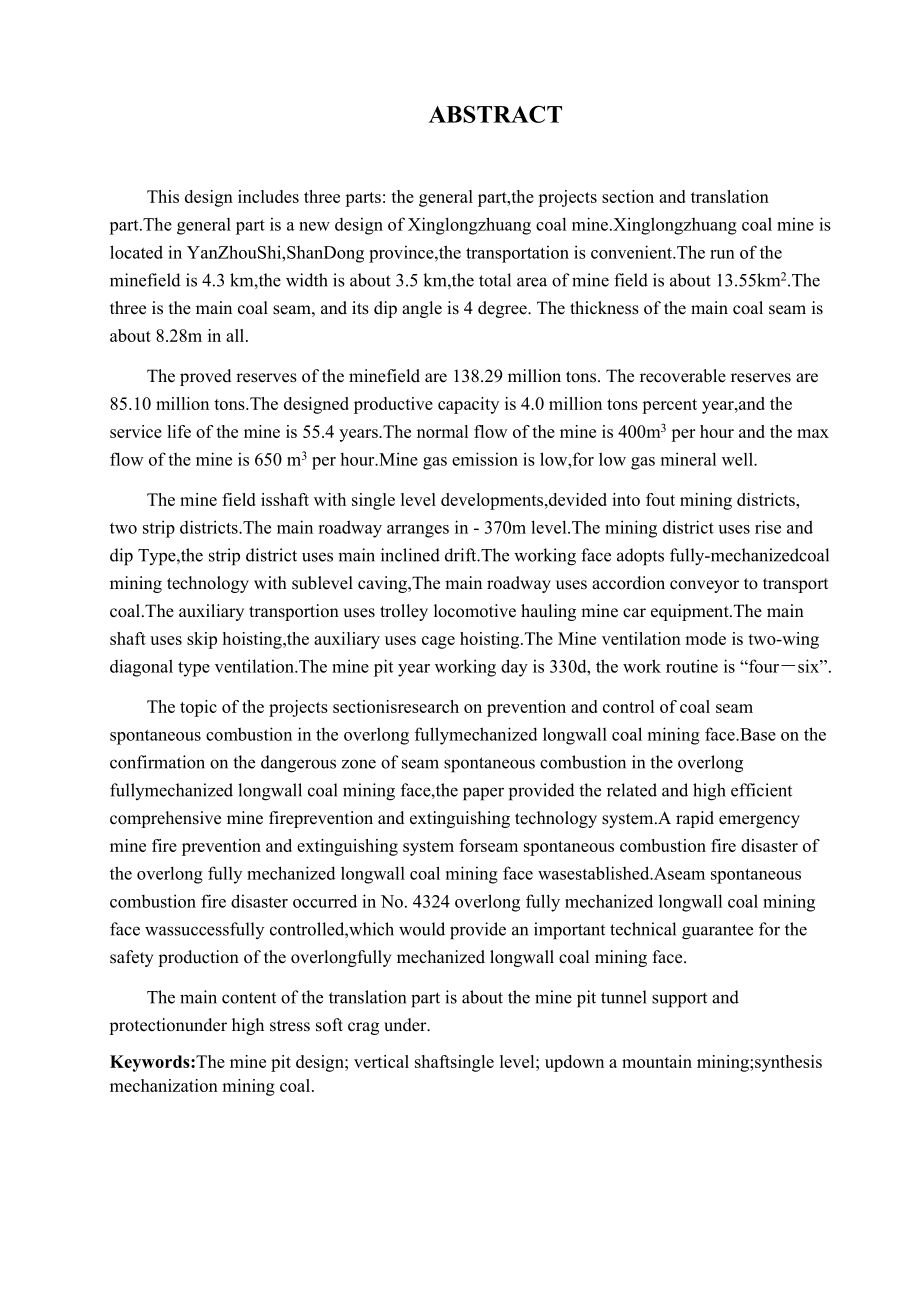

3、层自燃火灾进行治理，为超长综放面的安全生产提供了重要的技术保障。翻译部分主要内容为高应力软岩下矿井巷道支护，英文题目为：Under high stress soft crag mine pit tunnel supports and protections。关键字：矿井设计；立井单水平；上下山开采；综合机械化采煤ABSTRACTThis design includes three parts: the general part,the projects section and translation part.The general part is a new design of Xinglo
4、ngzhuang coal mine.Xinglongzhuang coal mine is located in YanZhouShi,ShanDong province,the transportation is convenient.The run of the minefield is 4.3 km,the width is about 3.5 km,the total area of mine field is about 13.55km2.The three is the main coal seam, and its dip angle is 4 degree. The thic
5、kness of the main coal seam is about 8.28m in all.The proved reserves of the minefield are 138.29 million tons. The recoverable reserves are 85.10 million tons.The designed productive capacity is 4.0 million tons percent year,and the service life of the mine is 55.4 years.The normal flow of the mine
6、 is 400m3 per hour and the max flow of the mine is 650 m3 per hour.Mine gas emission is low,for low gas mineral well.The mine field isshaft with single level developments,devided into fout mining districts, two strip districts.The main roadway arranges in - 370m level.The mining district uses rise a
7、nd dip Type,the strip district uses main inclined drift.The working face adopts fully-mechanizedcoal mining technology with sublevel caving,The main roadway uses accordion conveyor to transport coal.The auxiliary transportion uses trolley locomotive hauling mine car equipment.The main shaft uses ski
8、p hoisting,the auxiliary uses cage hoisting.The Mine ventilation mode is two-wing diagonal type ventilation.The mine pit year working day is 330d, the work routine is “foursix”.The topic of the projects sectionisresearch on prevention and control of coal seam spontaneous combustion in the overlong f
9、ullymechanized longwall coal mining face.Base on the confirmation on the dangerous zone of seam spontaneous combustion in the overlong fullymechanized longwall coal mining face,the paper provided the related and high efficient comprehensive mine fireprevention and extinguishing technology system.A r
10、apid emergency mine fire prevention and extinguishing system forseam spontaneous combustion fire disaster of the overlong fully mechanized longwall coal mining face wasestablished.Aseam spontaneous combustion fire disaster occurred in No. 4324 overlong fully mechanized longwall coal mining face wass
11、uccessfully controlled,which would provide an important technical guarantee for the safety production of the overlongfully mechanized longwall coal mining face.The main content of the translation part is about the mine pit tunnel support and protectionunder high stress soft crag under.Keywords:The m

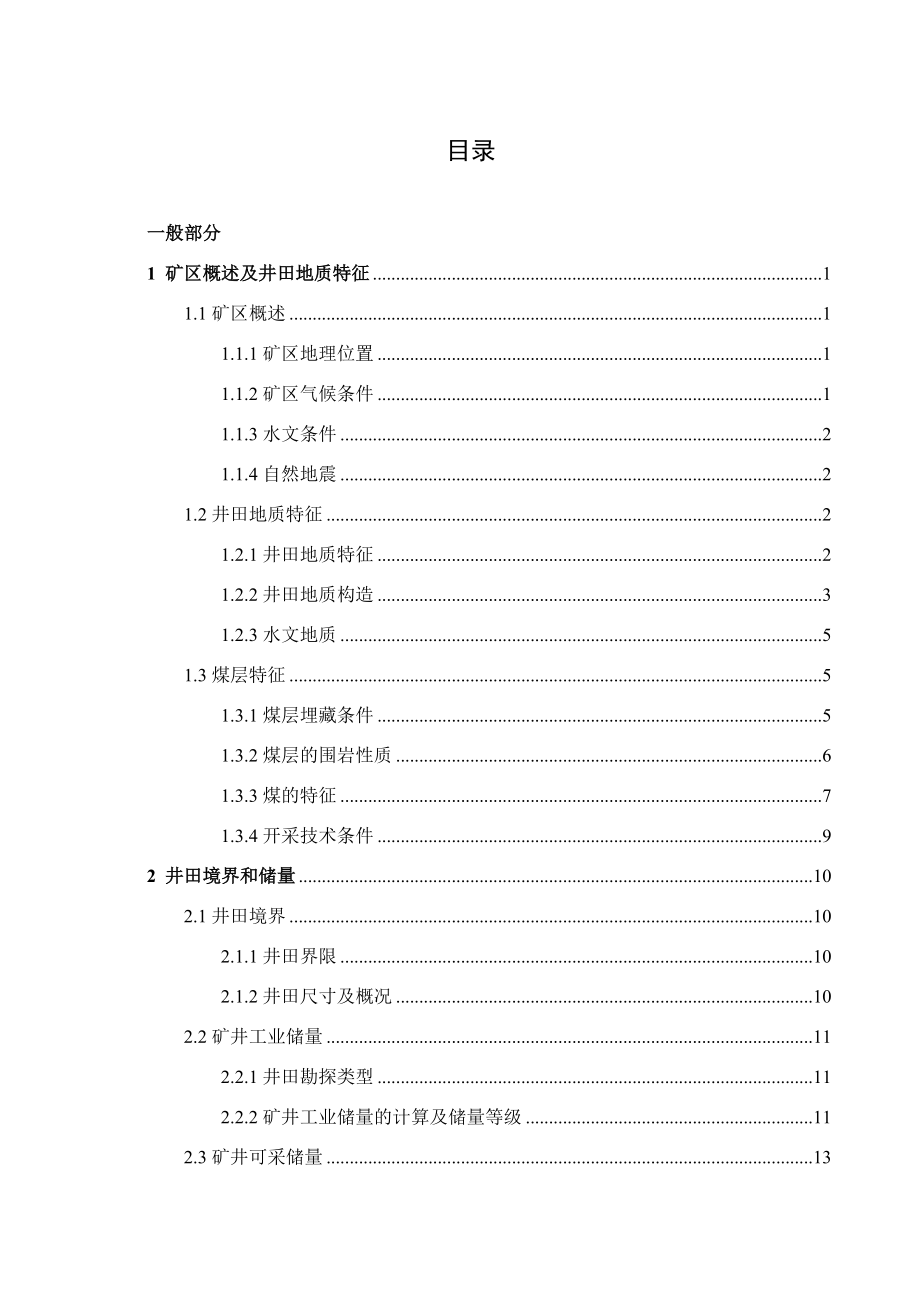

12、ine pit design; vertical shaftsingle level; updown a mountain mining;synthesis mechanization mining coal.目录一般部分1 矿区概述及井田地质特征11.1矿区概述11.1.1矿区地理位置11.1.2矿区气候条件11.1.3水文条件21.1.4自然地震21.2井田地质特征21.2.1井田地质特征21.2.2井田地质构造31.2.3水文地质51.3煤层特征51.3.1煤层埋藏条件51.3.2煤层的围岩性质61.3.3煤的特征71.3.4开采技术条件92 井田境界和储量102.1井田境界102.1.
13、1井田界限102.1.2井田尺寸及概况102.2矿井工业储量112.2.1井田勘探类型112.2.2矿井工业储量的计算及储量等级112.3矿井可采储量132.3.1矿井永久保护煤柱损失量132.3.2矿井的可采储量163 矿井工作制度、设计生产能力及服务年限173.1矿井工作制度173.2矿井设计能力及服务年限173.2.1确定依据173.2.2确定矿井设计生产能力173.2.3矿井服务年限183.2.4井型校核194 井田开拓204.1井田开拓的基本问题204.1.1确定井筒形式、数目、位置及坐标204.1.2工业场地的位置214.1.3采采区的划分224.1.4开采水平的确定224.1.5
