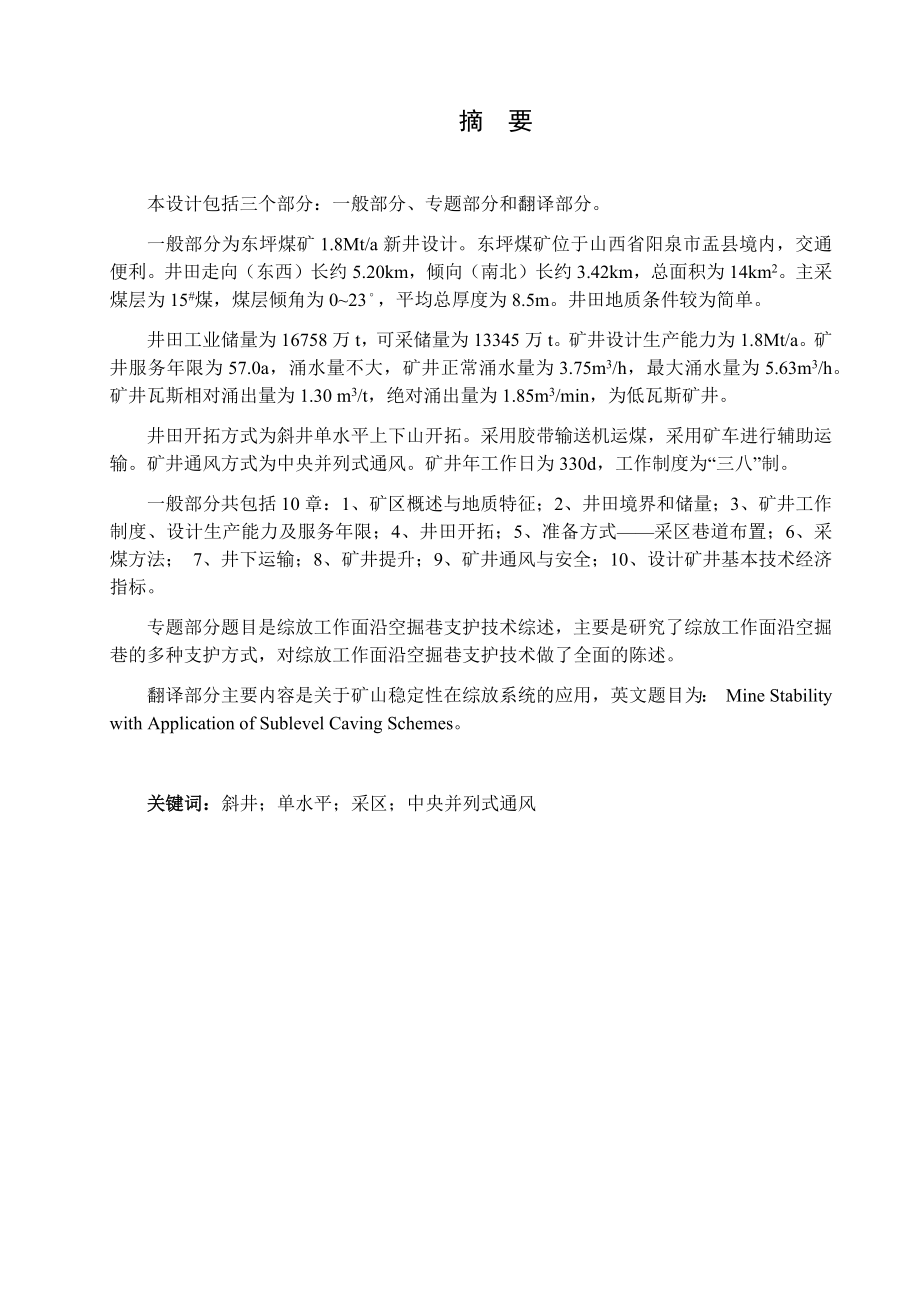

1、摘 要本设计包括三个部分：一般部分、专题部分和翻译部分。一般部分为东坪煤矿1.8Mt/a新井设计。东坪煤矿位于山西省阳泉市盂县境内，交通便利。井田走向（东西）长约5.20km，倾向（南北）长约3.42km，总面积为14km2。主采煤层为15#煤，煤层倾角为023，平均总厚度为8.5m。井田地质条件较为简单。井田工业储量为16758万t，可采储量为13345万t。矿井设计生产能力为1.8Mt/a。矿井服务年限为57.0a，涌水量不大，矿井正常涌水量为3.75m3/h，最大涌水量为5.63m3/h。矿井瓦斯相对涌出量为1.30 m3/t，绝对涌出量为1.85m3/min，为低瓦斯矿井。井田开拓方式
2、为斜井单水平上下山开拓。采用胶带输送机运煤，采用矿车进行辅助运输。矿井通风方式为中央并列式通风。矿井年工作日为330d，工作制度为“三八”制。一般部分共包括10章：1、矿区概述与地质特征；2、井田境界和储量；3、矿井工作制度、设计生产能力及服务年限；4、井田开拓；5、准备方式采区巷道布置；6、采煤方法； 7、井下运输；8、矿井提升；9、矿井通风与安全；10、设计矿井基本技术经济指标。专题部分题目是综放工作面沿空掘巷支护技术综述，主要是研究了综放工作面沿空掘巷的多种支护方式，对综放工作面沿空掘巷支护技术做了全面的陈述。翻译部分主要内容是关于矿山稳定性在综放系统的应用，英文题目为： Mine St

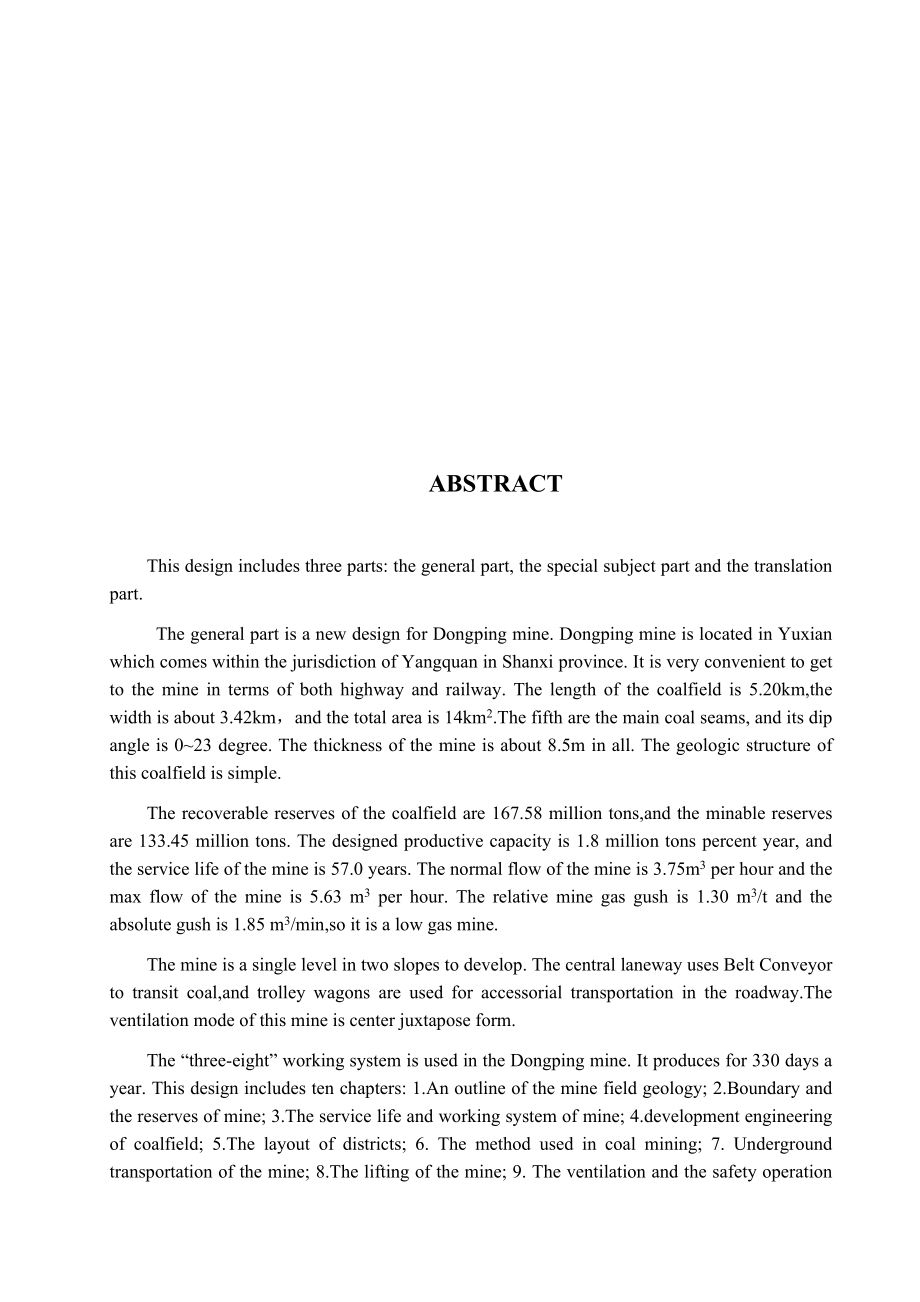

3、ability with Application of Sublevel Caving Schemes。关键词：斜井；单水平；采区；中央并列式通风ABSTRACTThis design includes three parts: the general part, the special subject part and the translation part. The general part is a new design for Dongping mine. Dongping mine is located in Yuxian which comes within the jurisd
4、iction of Yangquan in Shanxi province. It is very convenient to get to the mine in terms of both highway and railway. The length of the coalfield is 5.20km,the width is about 3.42km，and the total area is 14km2.The fifth are the main coal seams, and its dip angle is 023 degree. The thickness of the m
5、ine is about 8.5m in all. The geologic structure of this coalfield is simple.The recoverable reserves of the coalfield are 167.58 million tons,and the minable reserves are 133.45 million tons. The designed productive capacity is 1.8 million tons percent year, and the service life of the mine is 57.0
6、 years. The normal flow of the mine is 3.75m3 per hour and the max flow of the mine is 5.63 m3 per hour. The relative mine gas gush is 1.30 m3/t and the absolute gush is 1.85 m3/min,so it is a low gas mine. The mine is a single level in two slopes to develop. The central laneway uses Belt Conveyor t
7、o transit coal,and trolley wagons are used for accessorial transportation in the roadway.The ventilation mode of this mine is center juxtapose form.The “three-eight” working system is used in the Dongping mine. It produces for 330 days a year. This design includes ten chapters: 1.An outline of the m
8、ine field geology; 2.Boundary and the reserves of mine; 3.The service life and working system of mine; 4.development engineering of coalfield; 5.The layout of districts; 6. The method used in coal mining; 7. Underground transportation of the mine; 8.The lifting of the mine; 9. The ventilation and th

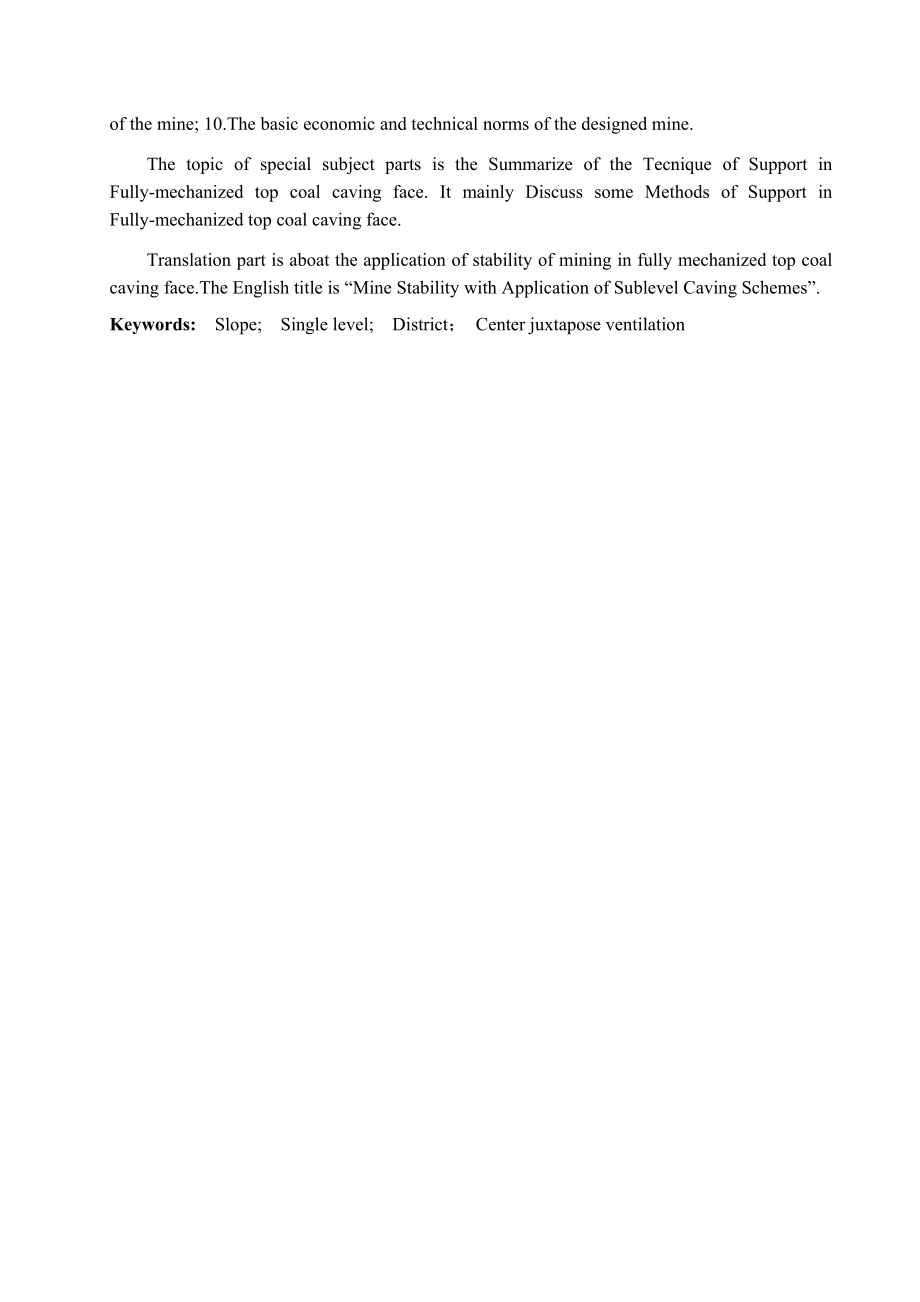

9、e safety operation of the mine; 10.The basic economic and technical norms of the designed mine.The topic of special subject parts is the Summarize of the Tecnique of Support in Fully-mechanized top coal caving face. It mainly Discuss some Methods of Support in Fully-mechanized top coal caving face.T
10、ranslation part is aboat the application of stability of mining in fully mechanized top coal caving face.The English title is “Mine Stability with Application of Sublevel Caving Schemes”.Keywords: Slope; Single level; District； Center juxtapose ventilation目录一般部分1 矿区概述及井田地质特征21.1矿区概述21.1.1井田地理位置及范围21
