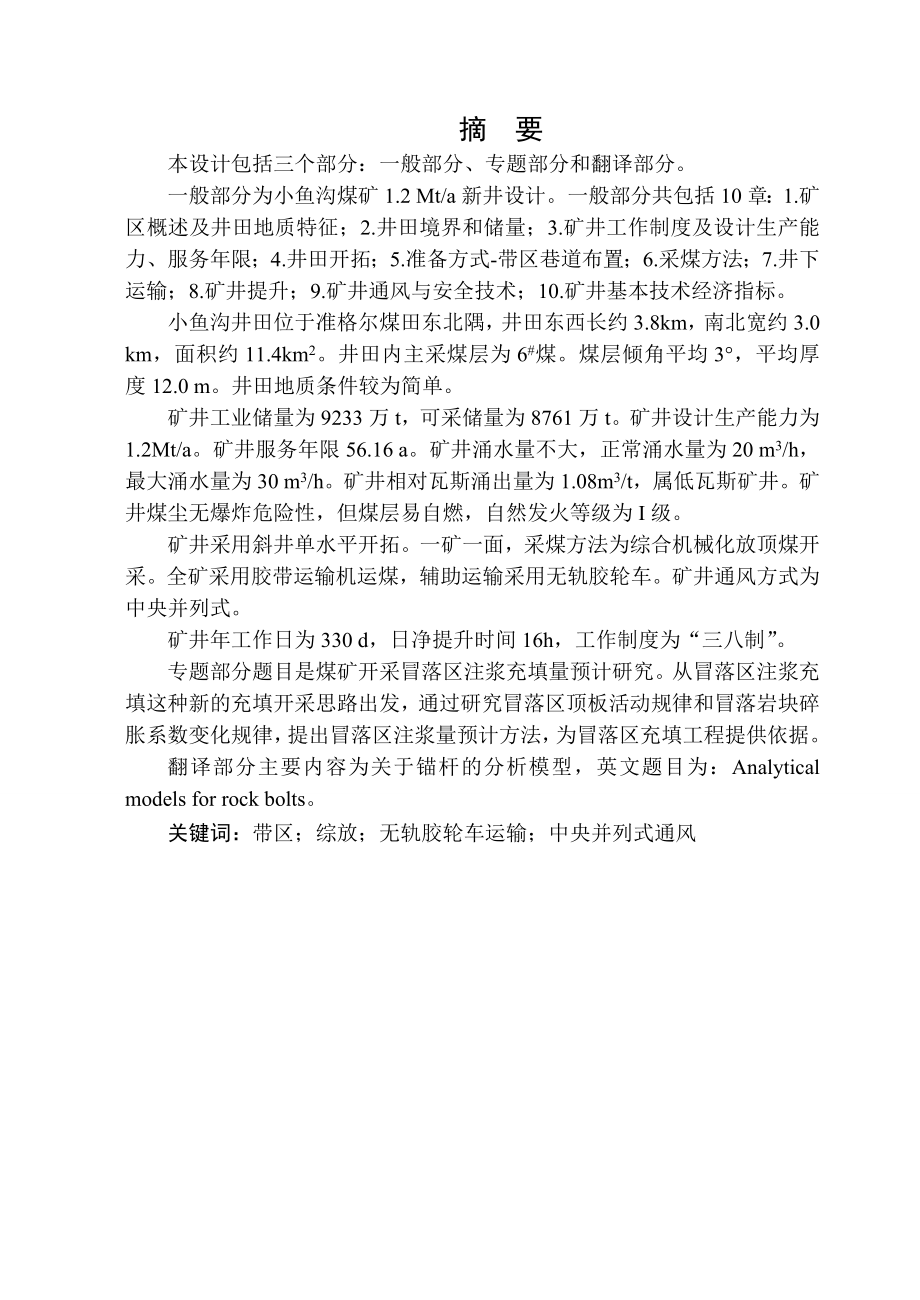

1、摘 要本设计包括三个部分：一般部分、专题部分和翻译部分。一般部分为小鱼沟煤矿1.2 Mt/a新井设计。一般部分共包括10章：1.矿区概述及井田地质特征；2.井田境界和储量；3.矿井工作制度及设计生产能力、服务年限；4.井田开拓；5.准备方式-带区巷道布置；6.采煤方法；7.井下运输；8.矿井提升；9.矿井通风与安全技术；10.矿井基本技术经济指标。小鱼沟井田位于准格尔煤田东北隅，井田东西长约3.8km，南北宽约3.0 km，面积约11.4km2。井田内主采煤层为6#煤。煤层倾角平均3，平均厚度12.0 m。井田地质条件较为简单。矿井工业储量为9233万t，可采储量为8761万t。矿井设计生产能
2、力为1.2Mt/a。矿井服务年限56.16 a。矿井涌水量不大，正常涌水量为20 m3/h，最大涌水量为30 m3/h。矿井相对瓦斯涌出量为1.08m3/t，属低瓦斯矿井。矿井煤尘无爆炸危险性，但煤层易自燃，自然发火等级为I级。矿井采用斜井单水平开拓。一矿一面，采煤方法为综合机械化放顶煤开采。全矿采用胶带运输机运煤，辅助运输采用无轨胶轮车。矿井通风方式为中央并列式。矿井年工作日为330 d，日净提升时间16h，工作制度为“三八制”。专题部分题目是煤矿开采冒落区注浆充填量预计研究。从冒落区注浆充填这种新的充填开采思路出发，通过研究冒落区顶板活动规律和冒落岩块碎胀系数变化规律，提出冒落区注浆量预计

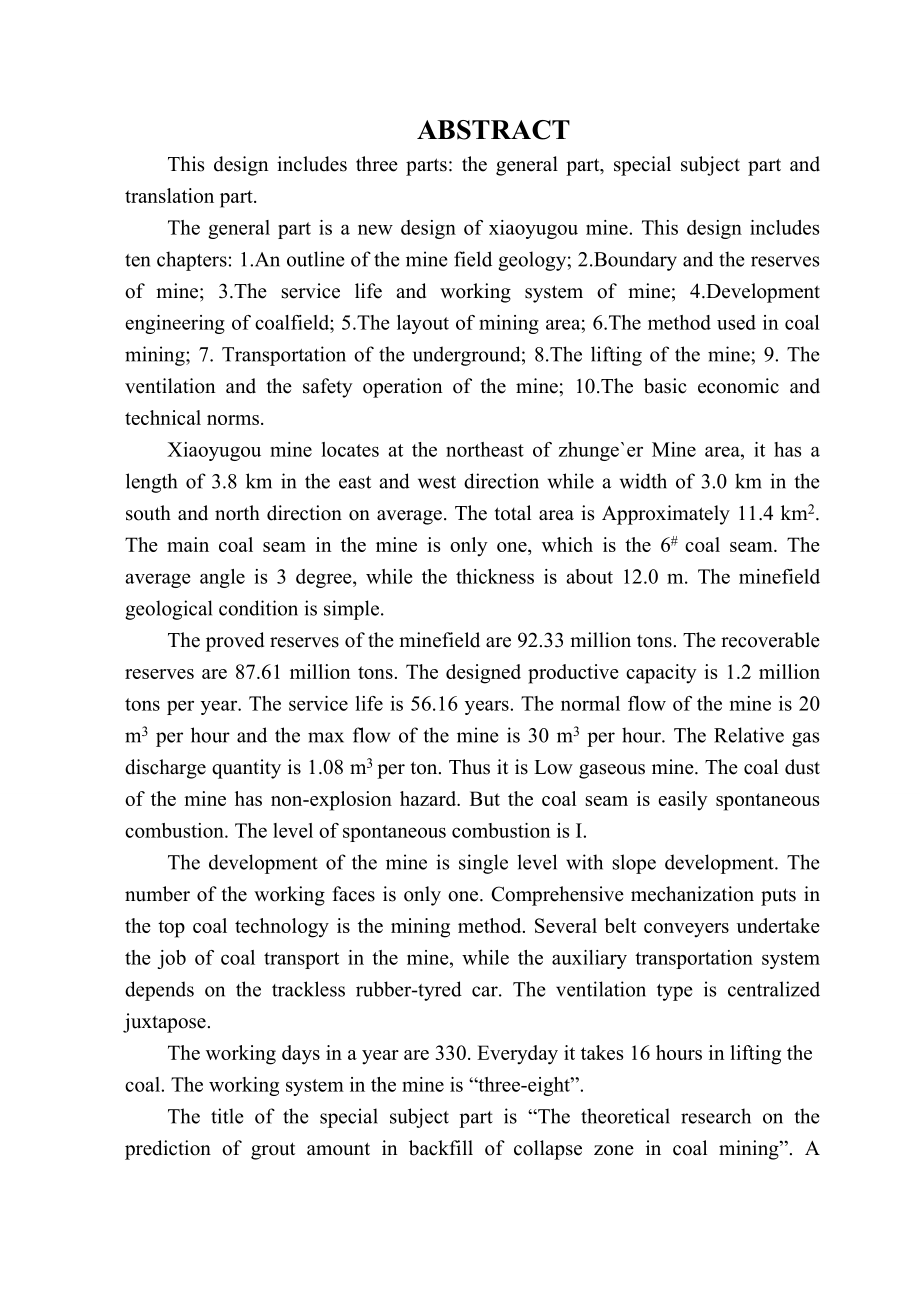

3、方法，为冒落区充填工程提供依据。翻译部分主要内容为关于锚杆的分析模型，英文题目为：Analytical models for rock bolts。关键词：带区；综放；无轨胶轮车运输；中央并列式通风ABSTRACTThis design includes three parts: the general part, special subject part and translation part.The general part is a new design of xiaoyugou mine. This design includes ten chapters: 1.An outline
4、 of the mine field geology; 2.Boundary and the reserves of mine; 3.The service life and working system of mine; 4.Development engineering of coalfield; 5.The layout of mining area; 6.The method used in coal mining; 7. Transportation of the underground; 8.The lifting of the mine; 9. The ventilation a
5、nd the safety operation of the mine; 10.The basic economic and technical norms.Xiaoyugou mine locates at the northeast of zhungeer Mine area, it has a length of 3.8 km in the east and west direction while a width of 3.0 km in the south and north direction on average. The total area is Approximately
6、11.4 km2. The main coal seam in the mine is only one, which is the 6# coal seam. The average angle is 3 degree, while the thickness is about 12.0 m. The minefield geological condition is simple.The proved reserves of the minefield are 92.33 million tons. The recoverable reserves are 87.61 million to
7、ns. The designed productive capacity is 1.2 million tons per year. The service life is 56.16 years. The normal flow of the mine is 20 m3 per hour and the max flow of the mine is 30 m3 per hour. The Relative gas discharge quantity is 1.08 m3 per ton. Thus it is Low gaseous mine. The coal dust of the
8、mine has non-explosion hazard. But the coal seam is easily spontaneous combustion. The level of spontaneous combustion is I.The development of the mine is single level with slope development. The number of the working faces is only one. Comprehensive mechanization puts in the top coal technology is
9、the mining method. Several belt conveyers undertake the job of coal transport in the mine, while the auxiliary transportation system depends on the trackless rubber-tyred car. The ventilation type is centralized juxtapose.The working days in a year are 330. Everyday it takes 16 hours in lifting the

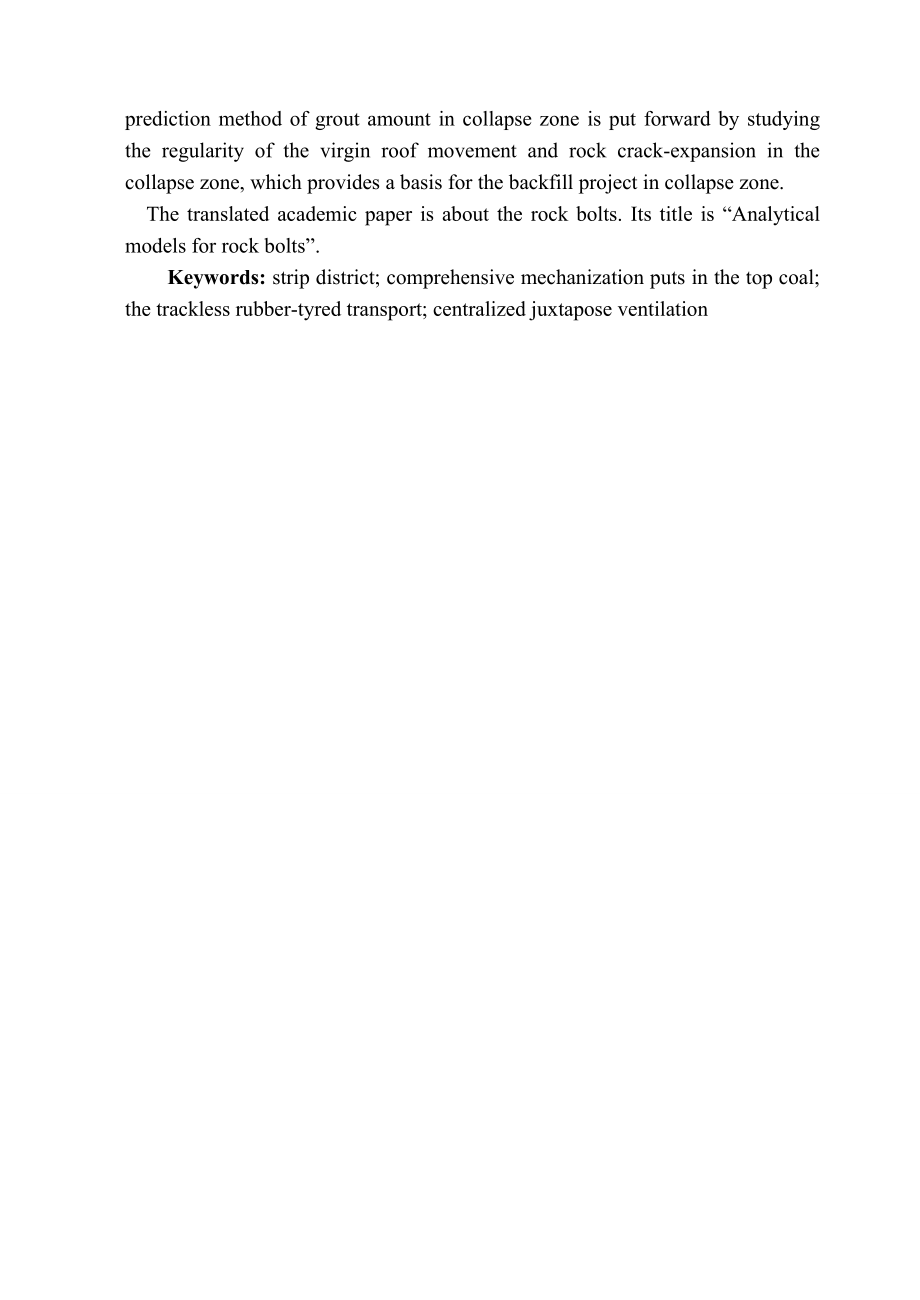

10、coal. The working system in the mine is “three-eight”.The title of the special subject part is “The theoretical research on the prediction of grout amount in backfill of collapse zone in coal mining”. A prediction method of grout amount in collapse zone is put forward by studying the regularity of t
11、he virgin roof movement and rock crack-expansion in the collapse zone, which provides a basis for the backfill project in collapse zone.The translated academic paper is about the rock bolts. Its title is “Analytical models for rock bolts”.Keywords: strip district; comprehensive mechanization puts in
12、 the top coal; the trackless rubber-tyred transport; centralized juxtapose ventilation目 录一般部分1 矿区概述及井田地质特征11.1 矿区概述11.2 井田地质特征41.3 煤层特征92 井田境界和储量142.1 井田境界142.2 矿井储量153 矿井工作制度、设计生产能力及服务年限183.1 矿井工作制度183.2 矿井设计生产能力及服务年限184 井田开拓214.1 井田开拓的基本问题214.2 矿井基本巷道325 准备方式带区巷道布置465.1 煤层地质特征465.2 带区巷道布置及生产系统475.
13、3 带区车场选型设计526 采煤方法536.1 采煤工艺方式536.2 回采巷道布置627 井下运输677.1 概述677.2 带区运输设备选择698 矿井提升728.1 概述728.2 主副井提升729 矿井通风及安全技术759.1 概况759.2 矿井通风方式769.3 矿井风阻计算799.4 矿井通风设备选型859.5 防止特殊灾害的安全措施8810 设计矿井基本技术经济指标91专题部分煤矿开采冒落区注浆充填量预计研究941 绪论941.1 问题的提出与研究意义941.2 文献综述961.3 主要研究内容及研究思路1042 冒落区注浆量的影响因素1042.1 岩体孔隙率1052.2 岩体
14、碎胀系数1062.3 岩体轴向应力1062.4 注浆工艺1073 冒落区模型建立1073.1 冒落区形态分类1083.2 碎胀系数KP的确定1083.3 冒落岩块与顶板之间存在离层空间1103.4 冒落岩块充满采空区1104 冒落区注浆充填量的预计方法1114.1 伪注浆预计方法概述1114.2 预计方法具体步骤1115 研究主要结论113参考文献115翻译部分英文原文117中文译文122致 谢126一般部分第125页1 矿区概述及井田地质特征1.1 矿区概述1.1.1 矿区地理位置与交通（一）地理位置小鱼沟井田位于准格尔煤田东北隅。其西界与东孔兑普查区相邻；南以小鱼沟为界与牛连沟详终区相接；
15、北、东界到煤层露头线。面积约16Km2。其地理座标为： 北纬 3 95722395905东经 11120471112232 本区行政区划隶属准格尔旗东孔兑乡和窑沟乡管辖。小鱼沟井田与周边矿区位置关系见示意（图1-1）。图1-1 核实区与周边矿区关系位置示意（二）交通1.铁路 大（同）准（格尔）铁路：此线是准格尔能源有限责任公司所建的运煤专用线，东起大（同）秦（皇岛）线大同站，西至薛家湾镇，全长约264 Km，为工企级电气化铁路，现运输能力为1500万吨/年。该线通过改造至2020年运输能力将提高至6000万吨/年。 准（格尔）东（胜）铁路：该铁路是目前正在修建的地方铁路，东起大准线薛家湾站，向西延伸至包（头）神（木）铁路的巴图塔站。全长145 Km，为工企级铁路，运输能力可达800万吨/年。另外，神华集团准能公司拟建准（格尔）河（曲）铁路。该线北起大准线黑岱沟站，南到阴（塔）火（山）线的火山站，经阴火线可与神（木）朔（州）铁路相接。内蒙古自治区拟建呼（和浩特）托（克托）铁路已进行前期准备工作，该线经托克托电厂专用线与大准铁路相接。2公路
