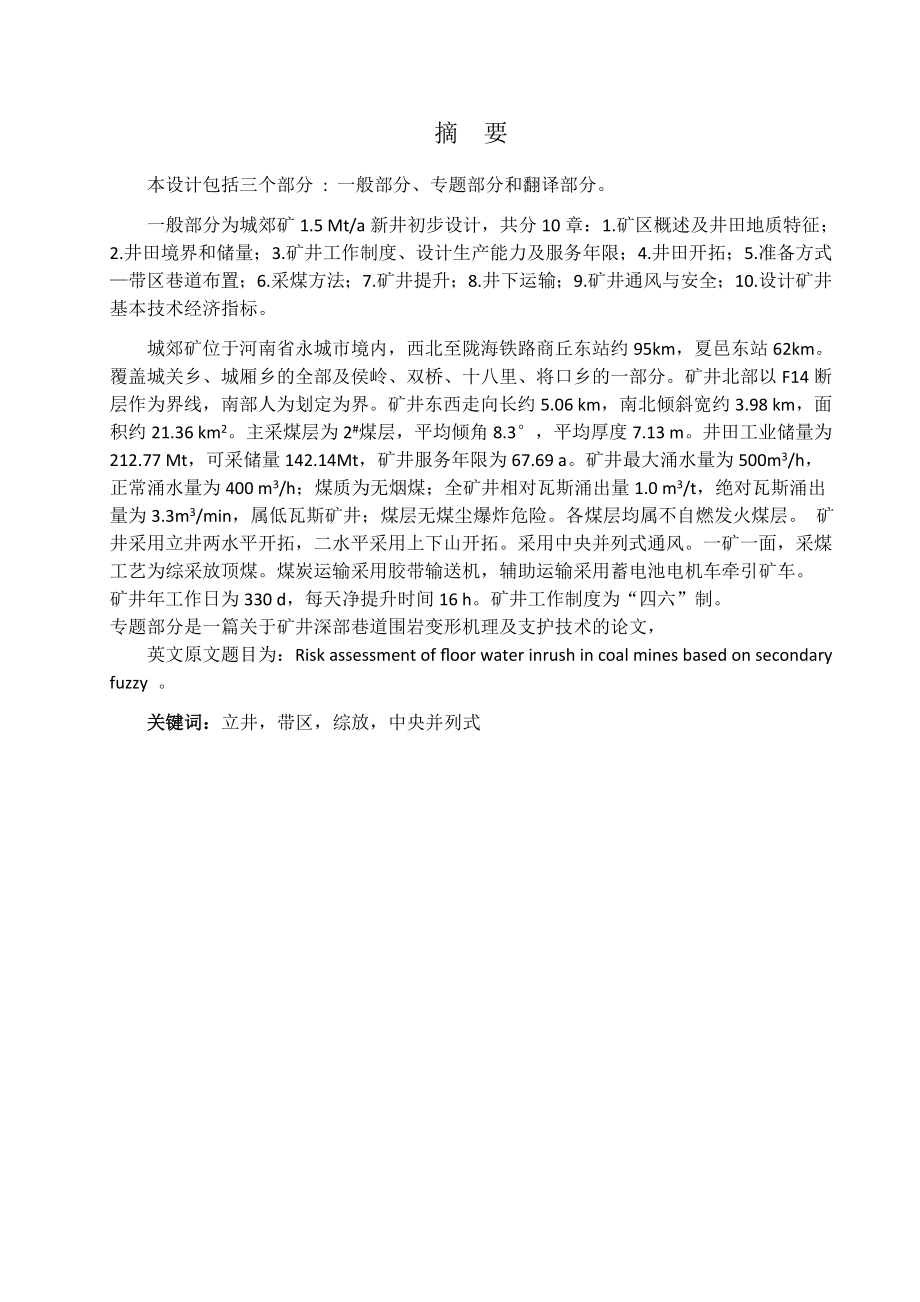

1、摘 要本设计包括三个部分 : 一般部分、专题部分和翻译部分。一般部分为城郊矿1.5 Mt/a新井初步设计，共分10章：1.矿区概述及井田地质特征；2.井田境界和储量；3.矿井工作制度、设计生产能力及服务年限；4.井田开拓；5.准备方式带区巷道布置；6.采煤方法；7.矿井提升；8.井下运输；9.矿井通风与安全；10.设计矿井基本技术经济指标。城郊矿位于河南省永城市境内，西北至陇海铁路商丘东站约95km，夏邑东站62km。覆盖城关乡、城厢乡的全部及侯岭、双桥、十八里、将口乡的一部分。矿井北部以F14断层作为界线，南部人为划定为界。矿井东西走向长约5.06 km，南北倾斜宽约3.98 km，面积约2
2、1.36 km2。主采煤层为2#煤层，平均倾角8.3，平均厚度7.13 m。井田工业储量为212.77 Mt，可采储量142.14Mt，矿井服务年限为67.69 a。矿井最大涌水量为500m3/h，正常涌水量为400 m3/h；煤质为无烟煤；全矿井相对瓦斯涌出量1.0 m3/t，绝对瓦斯涌出量为3.3m3/min，属低瓦斯矿井；煤层无煤尘爆炸危险。各煤层均属不自燃发火煤层。 矿井采用立井两水平开拓，二水平采用上下山开拓。采用中央并列式通风。一矿一面，采煤工艺为综采放顶煤。煤炭运输采用胶带输送机，辅助运输采用蓄电池电机车牵引矿车。 矿井年工作日为330 d，每天净提升时间16 h。矿井工作制度为

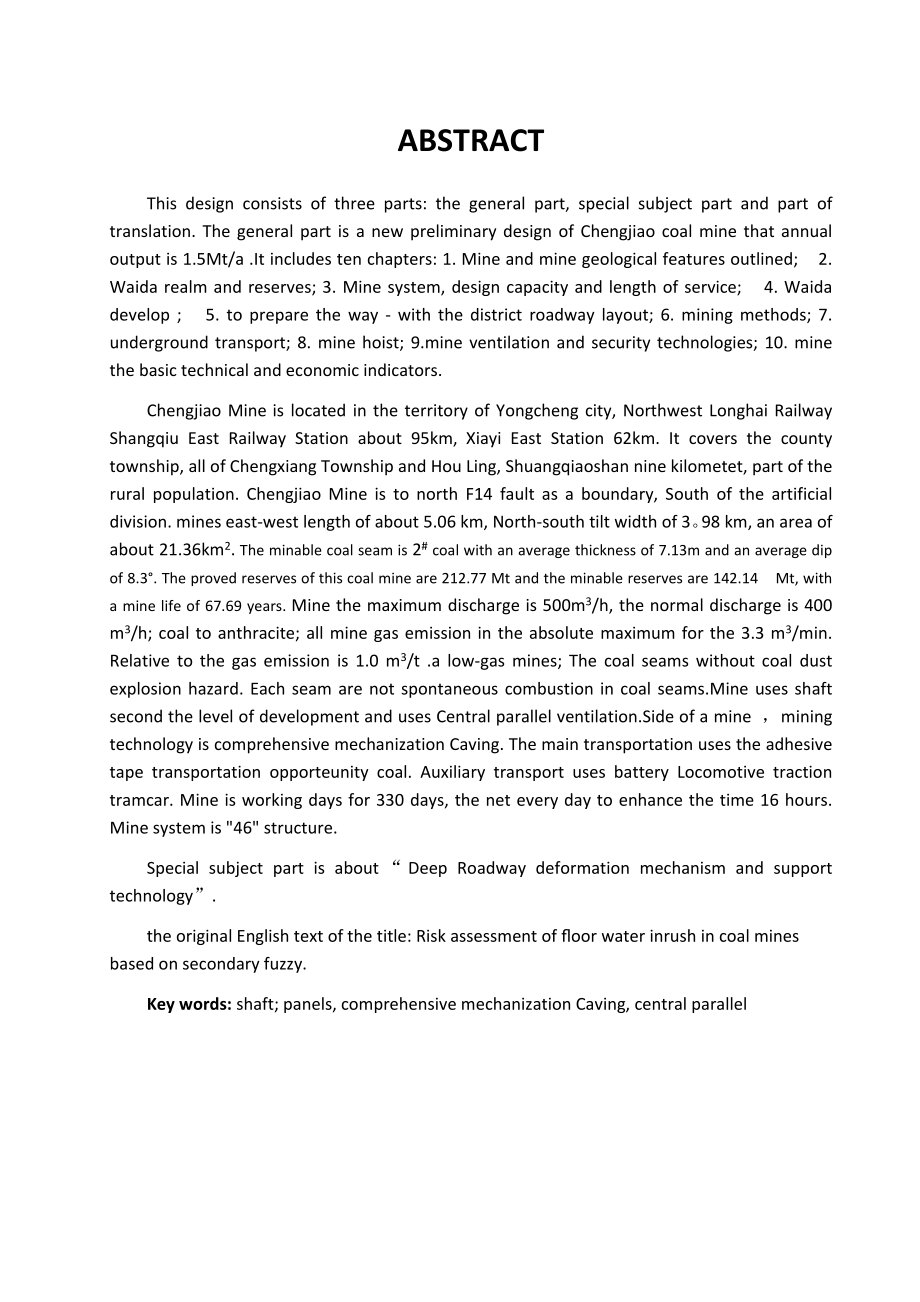

3、“四六”制。 专题部分是一篇关于矿井深部巷道围岩变形机理及支护技术的论文， 英文原文题目为：Risk assessment of oor water inrush in coal mines based on secondary fuzzy 。关键词：立井，带区，综放，中央并列式 ABSTRACTThis design consists of three parts: the general part, special subject part and part of translation. The general part is a new preliminary design of Ch
4、engjiao coal mine that annual output is 1.5Mt/a .It includes ten chapters: 1. Mine and mine geological features outlined; 2. Waida realm and reserves; 3. Mine system, design capacity and length of service; 4. Waida develop ; 5. to prepare the way - with the district roadway layout; 6. mining methods
5、; 7. underground transport; 8. mine hoist; 9.mine ventilation and security technologies; 10. mine the basic technical and economic indicators. Chengjiao Mine is located in the territory of Yongcheng city, Northwest Longhai Railway Shangqiu East Railway Station about 95km, Xiayi East Station 62km. It
6、 covers the county township, all of Chengxiang Township and Hou Ling, Shuangqiaoshan nine kilometet, part of the rural population. Chengjiao Mine is to north F14 fault as a boundary, South of the artificial division. mines east-west length of about 5.06 km, North-south tilt width of 3。98 km, an area
7、 of about 21.36km2. The minable coal seam is 2# coal with an average thickness of 7.13m and an average dip of 8.3. The proved reserves of this coal mine are 212.77 Mt and the minable reserves are 142.14 Mt, with a mine life of 67.69 years. Mine the maximum discharge is 500m3/h, the normal discharge
8、is 400 m3/h; coal to anthracite; all mine gas emission in the absolute maximum for the 3.3 m3/min. Relative to the gas emission is 1.0 m3/t .a low-gas mines; The coal seams without coal dust explosion hazard. Each seam are not spontaneous combustion in coal seams.Mine uses shaft second the level of
9、development and uses Central parallel ventilation.Side of a mine ，mining technology is comprehensive mechanization Caving. The main transportation uses the adhesive tape transportation opporteunity coal. Auxiliary transport uses battery Locomotive traction tramcar. Mine is working days for 330 days,
10、 the net every day to enhance the time 16 hours. Mine system is 46 structure. Special subject part is about“Deep Roadway deformation mechanism and support technology”.the original English text of the title: Risk assessment of oor water inrush in coal mines based on secondary fuzzy. Key words: shaft;

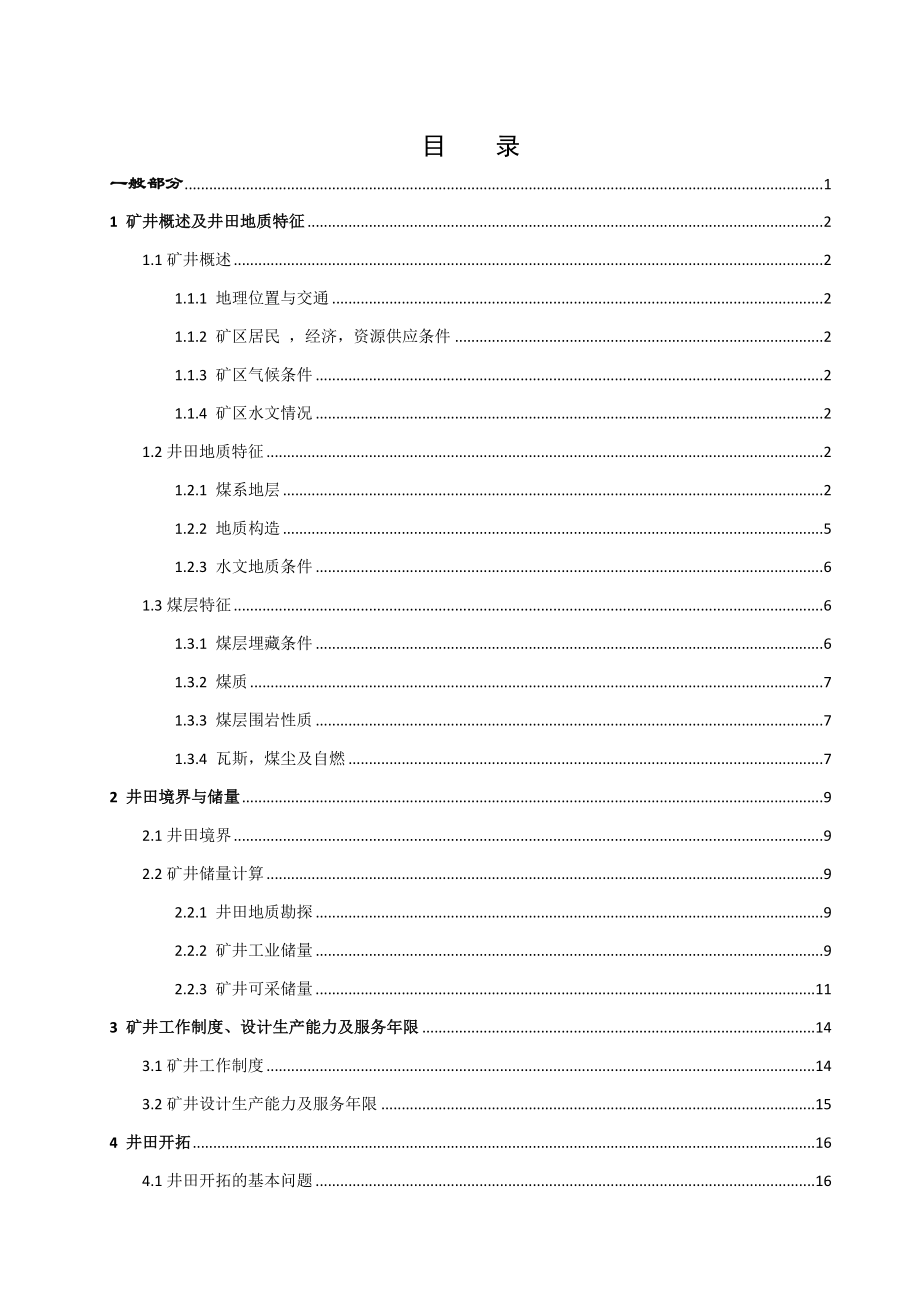

11、 panels, comprehensive mechanization Caving, central parallel目 录一般部分11 矿井概述及井田地质特征21.1矿井概述21.1.1 地理位置与交通21.1.2 矿区居民 ，经济，资源供应条件21.1.3 矿区气候条件21.1.4 矿区水文情况21.2井田地质特征21.2.1 煤系地层21.2.2 地质构造51.2.3 水文地质条件61.3煤层特征61.3.1 煤层埋藏条件61.3.2 煤质71.3.3 煤层围岩性质71.3.4 瓦斯，煤尘及自燃72 井田境界与储量92.1井田境界92.2矿井储量计算92.2.1 井田地质勘探92.2
12、.2 矿井工业储量92.2.3 矿井可采储量113 矿井工作制度、设计生产能力及服务年限143.1矿井工作制度143.2矿井设计生产能力及服务年限154 井田开拓164.1井田开拓的基本问题164.1.1 井筒形式及数目的确定174.1.2 井筒位置的确定194.1.3 工业场地的位置，形状及面积194.1.4 开采水平的确定及采区和带区的划分204.1.5 矿井开拓方案比较204.2矿井基本巷道264.2.1 井筒274.2.2 井底车场及硐室294.2.3 主要开拓巷道315 准备方式带区巷道布置345.1煤层的地质特征345.1.1 带区位置345.1.2 带区煤层特征345.1.3 煤
13、层顶底板岩石构造情况345.1.4 水文地质345.1.5 地质构造345.1.6 地表情况345.2带区巷道布置及生产系统345.2.1 带区准备方式的确定345.2.2 带区巷道布置355.2.3 带区生产系统365.2.4 带区内巷道掘进方法375.2.5 带区生产能力及采出率375.3带区车场选型设计396 采煤方法406.1采煤工艺方式406.1.1 采煤方法的选择406.1.2 回采工作面长度的确定416.1.3 工作面的推进方向和推进度416.1.4 综放工作面的设备选型及配套416.1.5 进刀方式446.1.6 放煤方式456.1.7 工作面端头支护和超前支护466.1.8
