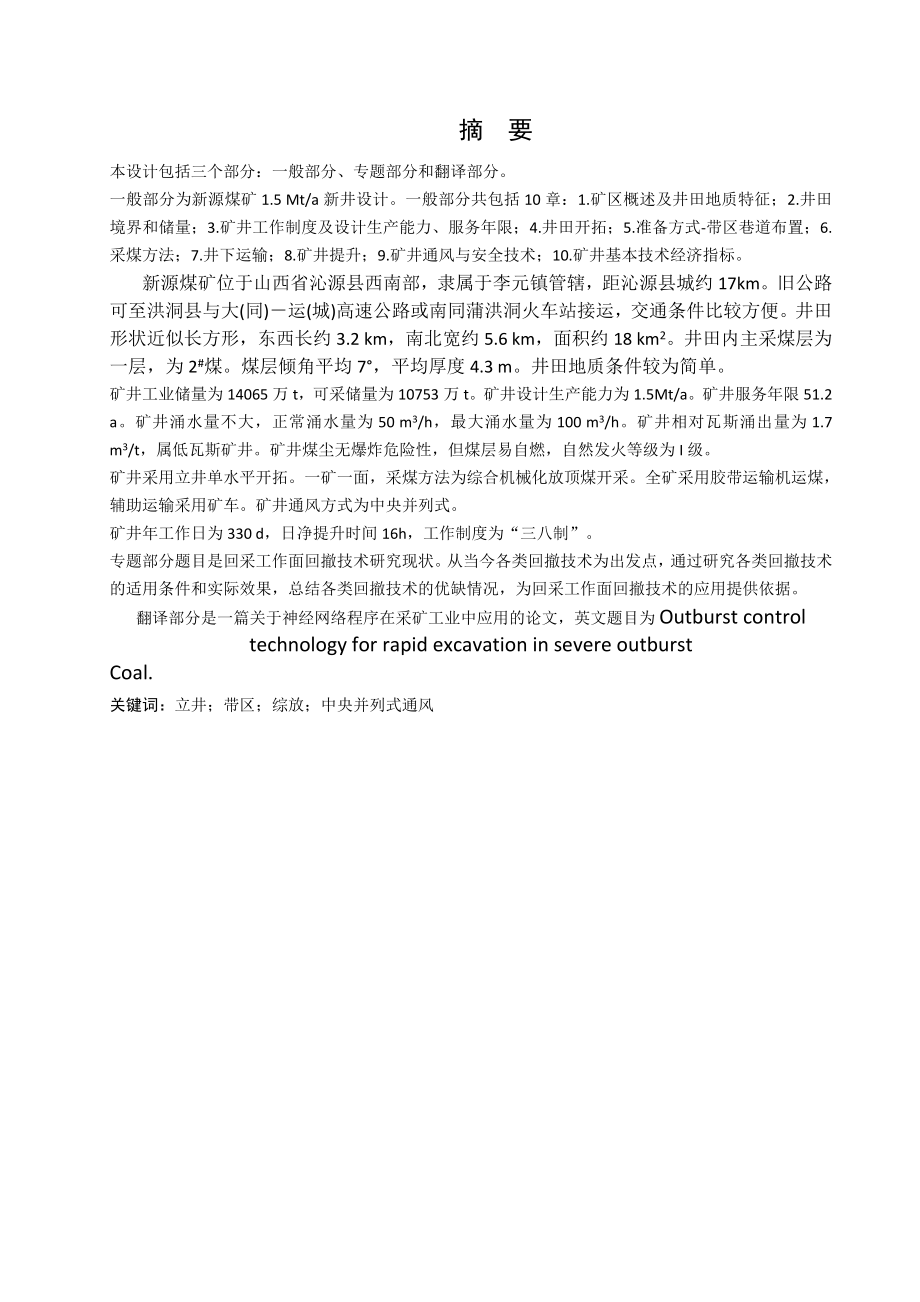

1、摘 要本设计包括三个部分：一般部分、专题部分和翻译部分。一般部分为新源煤矿1.5 Mt/a新井设计。一般部分共包括10章：1.矿区概述及井田地质特征；2.井田境界和储量；3.矿井工作制度及设计生产能力、服务年限；4.井田开拓；5.准备方式-带区巷道布置；6.采煤方法；7.井下运输；8.矿井提升；9.矿井通风与安全技术；10.矿井基本技术经济指标。新源煤矿位于山西省沁源县西南部，隶属于李元镇管辖，距沁源县城约17km。旧公路可至洪洞县与大(同)运(城)高速公路或南同蒲洪洞火车站接运，交通条件比较方便。井田形状近似长方形，东西长约3.2 km，南北宽约5.6 km，面积约18 km2。井田内主采煤
2、层为一层，为2#煤。煤层倾角平均7，平均厚度4.3 m。井田地质条件较为简单。矿井工业储量为14065万t，可采储量为10753万t。矿井设计生产能力为1.5Mt/a。矿井服务年限51.2 a。矿井涌水量不大，正常涌水量为50 m3/h，最大涌水量为100 m3/h。矿井相对瓦斯涌出量为1.7 m3/t，属低瓦斯矿井。矿井煤尘无爆炸危险性，但煤层易自燃，自然发火等级为I级。矿井采用立井单水平开拓。一矿一面，采煤方法为综合机械化放顶煤开采。全矿采用胶带运输机运煤，辅助运输采用矿车。矿井通风方式为中央并列式。矿井年工作日为330 d，日净提升时间16h，工作制度为“三八制”。专题部分题目是回采工作

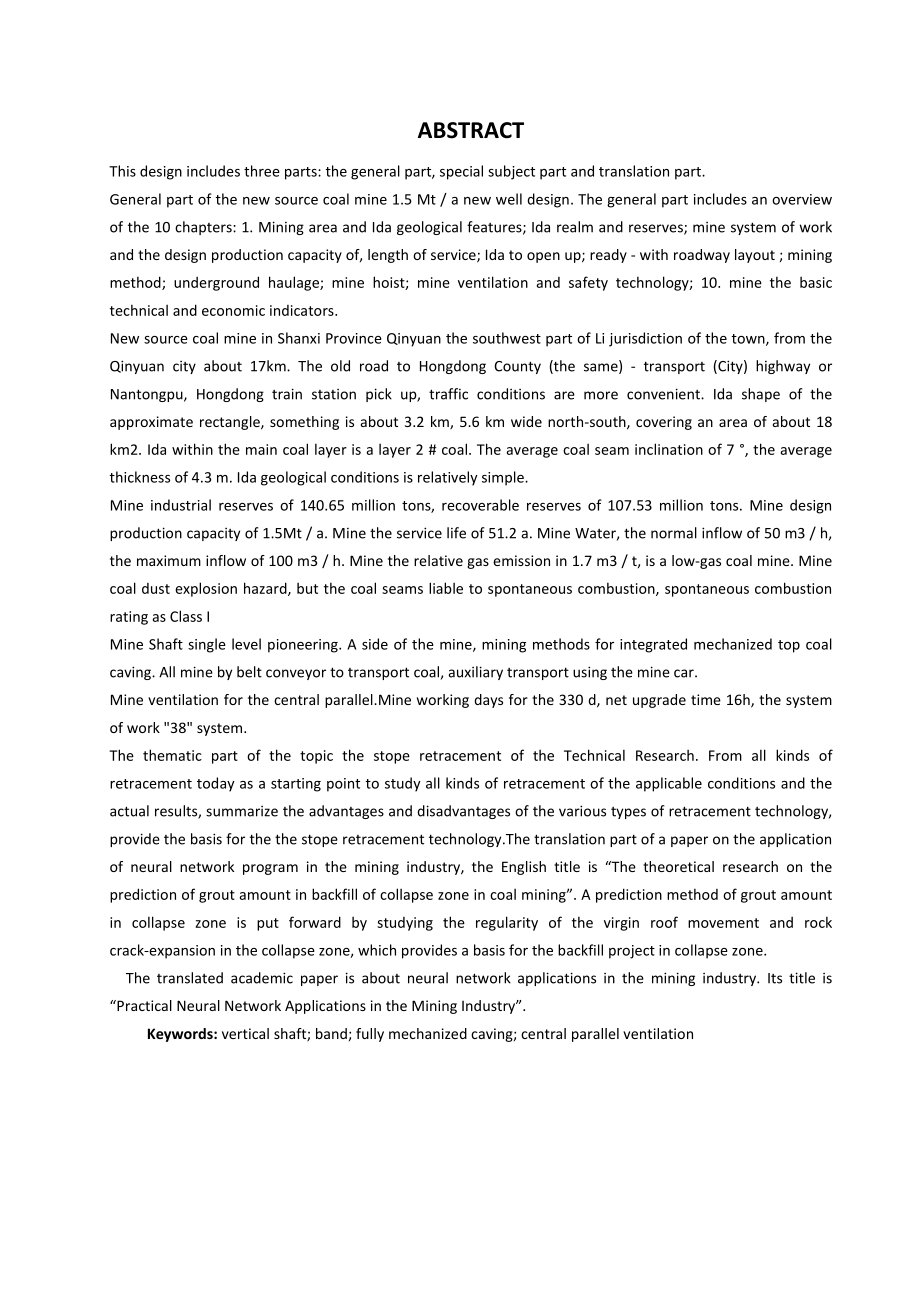

3、面回撤技术研究现状。从当今各类回撤技术为出发点，通过研究各类回撤技术的适用条件和实际效果，总结各类回撤技术的优缺情况，为回采工作面回撤技术的应用提供依据。翻译部分是一篇关于神经网络程序在采矿工业中应用的论文，英文题目为Outburst control technology for rapid excavation in severe outburst Coal.关键词：立井；带区；综放；中央并列式通风ABSTRACTThis design includes three parts: the general part, special subject part and translation p
4、art.General part of the new source coal mine 1.5 Mt / a new well design. The general part includes an overview of the 10 chapters: 1. Mining area and Ida geological features; Ida realm and reserves; mine system of work and the design production capacity of, length of service; Ida to open up; ready -
5、 with roadway layout ; mining method; underground haulage; mine hoist; mine ventilation and safety technology; 10. mine the basic technical and economic indicators.New source coal mine in Shanxi Province Qinyuan the southwest part of Li jurisdiction of the town, from the Qinyuan city about 17km. The
6、 old road to Hongdong County (the same) - transport (City) highway or Nantongpu, Hongdong train station pick up, traffic conditions are more convenient. Ida shape of the approximate rectangle, something is about 3.2 km, 5.6 km wide north-south, covering an area of about 18 km2. Ida within the main c
7、oal layer is a layer 2 # coal. The average coal seam inclination of 7 , the average thickness of 4.3 m. Ida geological conditions is relatively simple.Mine industrial reserves of 140.65 million tons, recoverable reserves of 107.53 million tons. Mine design production capacity of 1.5Mt / a. Mine the
8、service life of 51.2 a. Mine Water, the normal inflow of 50 m3 / h, the maximum inflow of 100 m3 / h. Mine the relative gas emission in 1.7 m3 / t, is a low-gas coal mine. Mine coal dust explosion hazard, but the coal seams liable to spontaneous combustion, spontaneous combustion rating as Class IMi
9、ne Shaft single level pioneering. A side of the mine, mining methods for integrated mechanized top coal caving. All mine by belt conveyor to transport coal, auxiliary transport using the mine car. Mine ventilation for the central parallel.Mine working days for the 330 d, net upgrade time 16h, the sy
10、stem of work 38 system.The thematic part of the topic the stope retracement of the Technical Research. From all kinds of retracement today as a starting point to study all kinds of retracement of the applicable conditions and the actual results, summarize the advantages and disadvantages of the vari
11、ous types of retracement technology, provide the basis for the the stope retracement technology.The translation part of a paper on the application of neural network program in the mining industry, the English title is “The theoretical research on the prediction of grout amount in backfill of collaps
12、e zone in coal mining”. A prediction method of grout amount in collapse zone is put forward by studying the regularity of the virgin roof movement and rock crack-expansion in the collapse zone, which provides a basis for the backfill project in collapse zone.The translated academic paper is about ne

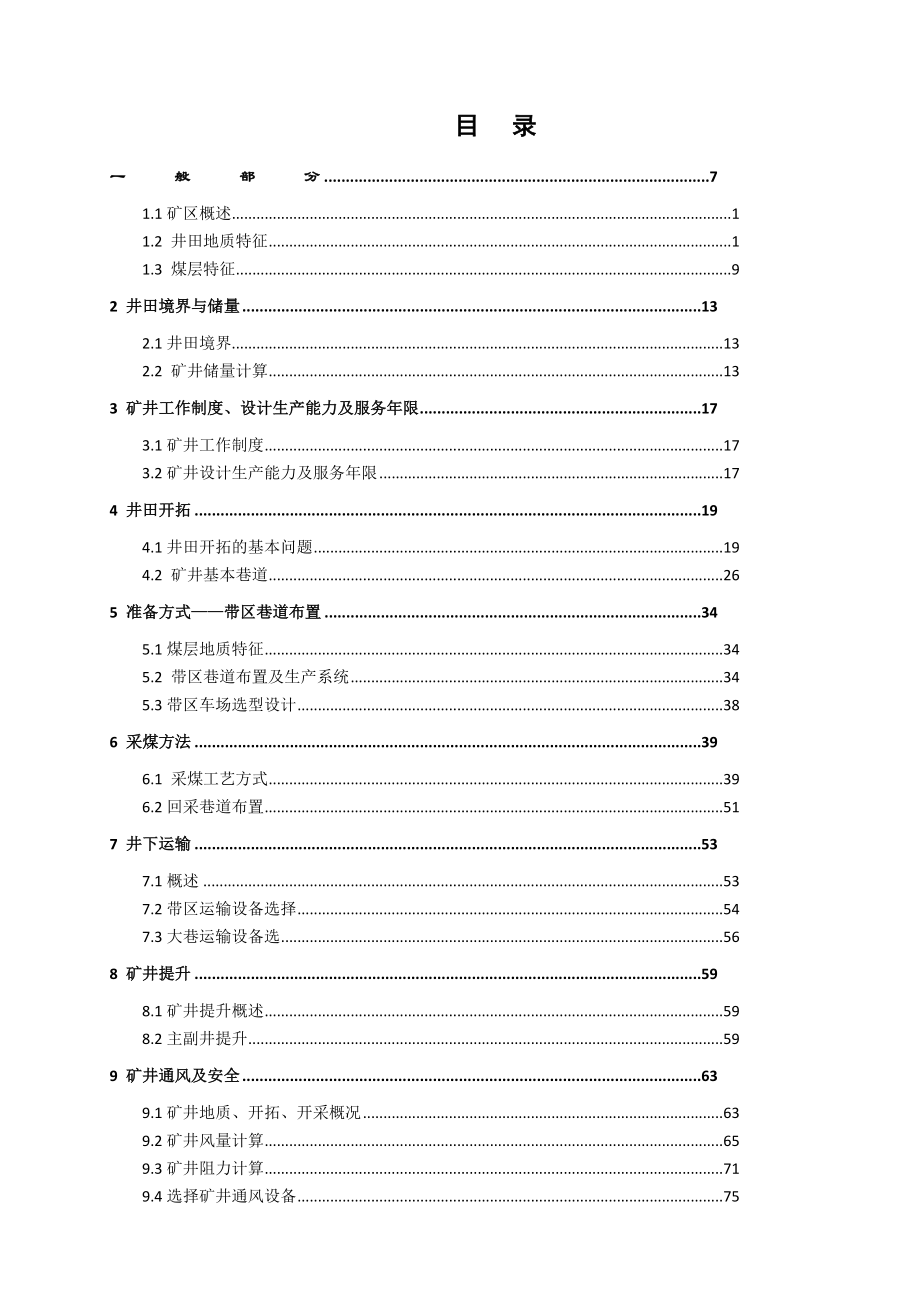

13、ural network applications in the mining industry. Its title is “Practical Neural Network Applications in the Mining Industry”.Keywords: vertical shaft; band; fully mechanized caving; central parallel ventilation目 录一 般 部 分71.1矿区概述11.2 井田地质特征11.3 煤层特征92 井田境界与储量132.1井田境界132.2 矿井储量计算133 矿井工作制度、设计生产能力及服务
14、年限173.1矿井工作制度173.2矿井设计生产能力及服务年限174 井田开拓194.1井田开拓的基本问题194.2 矿井基本巷道265 准备方式带区巷道布置345.1煤层地质特征345.2 带区巷道布置及生产系统345.3带区车场选型设计386 采煤方法396.1 采煤工艺方式396.2回采巷道布置517 井下运输537.1概述537.2带区运输设备选择547.3大巷运输设备选568 矿井提升598.1矿井提升概述598.2主副井提升599 矿井通风及安全639.1矿井地质、开拓、开采概况639.2矿井风量计算659.3矿井阻力计算719.4选择矿井通风设备759.5安全灾害的预防措施781
15、0 设计矿井基本技术经济指标800 引言831大采高综采工作面支架回撤技术831.1 工作面概况831.2 巷道布置和回撤通道支护832综放工作面设备及支架回撤技术862.1回撤设备及支架的工作面概况862.2 设备及支架回撤前的准备工作872.3支架回撤工艺882.4 回撤设备及支架的安全技术措施893薄基岩条件综采设备快速回撤技术研究903.1 概况903.2控顶技术903.3 撤除顺序913.4 调设掩护支架913.5 中间支架的撤除923.6 组织管理方面934 结论93英文原文95中文翻译1011.基本情况102致 谢1061 矿区概述及井田地质特征1.1矿区概述1.1.1 矿区地理位置 新源煤矿位于山西省沁源县西南部，隶属于李元镇管辖。地理坐标为： 北纬363304363453， 东经11212311121433，矿井工业场地位于山西省沁源县西部李元镇附近，距沁源县城约17km。沁(源)洪(洞)公路从井田北部通过，向东17km至沁源县城接汾(阳)屯(留)省级公路及沁(沁源)沁(沁县)公路，煤矿距太焦线沁县火车站76km，距309国道张店镇 54km ， 距南同蒲线介休市100km、距平遥县城105km，向西南经古县约75km旧公路可至洪洞
