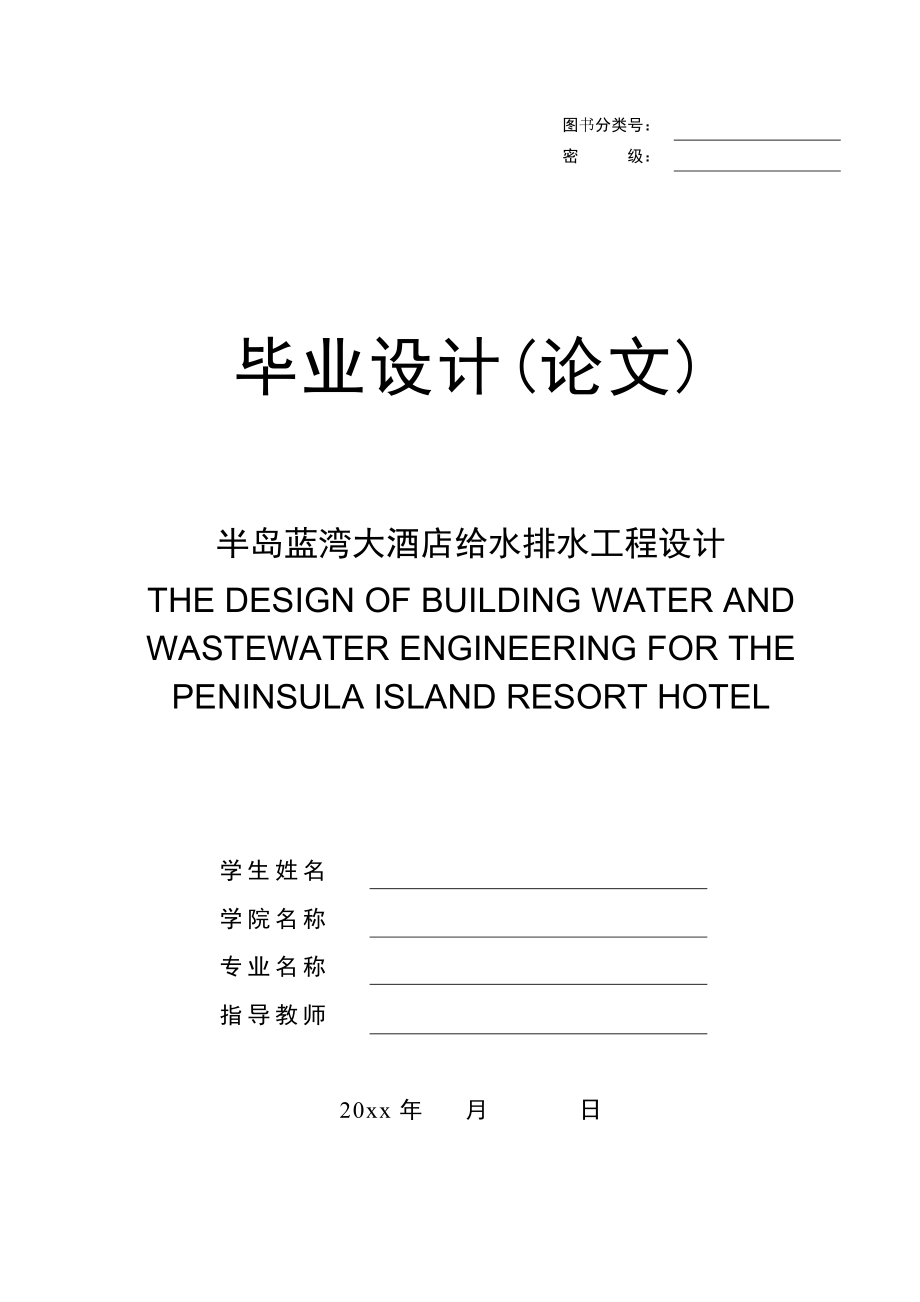

1、图书分类号：密 级：毕业设计(论文)半岛蓝湾大酒店给水排水工程设计THE DESIGN OF BUILDING WATER AND WASTEWATER ENGINEERING FOR THE PENINSULA ISLAND RESORT HOTEL 学生姓名学院名称专业名称指导教师20xx年月日xxx学院学位论文原创性声明本人郑重声明： 所呈交的学位论文，是本人在导师的指导下，独立进行研究工作所取得的成果。除文中已经注明引用或参考的内容外，本论文不含任何其他个人或集体已经发表或撰写过的作品或成果。对本文的研究做出重要贡献的个人和集体，均已在文中以明确方式标注。本人完全意识到本声明的法律结果

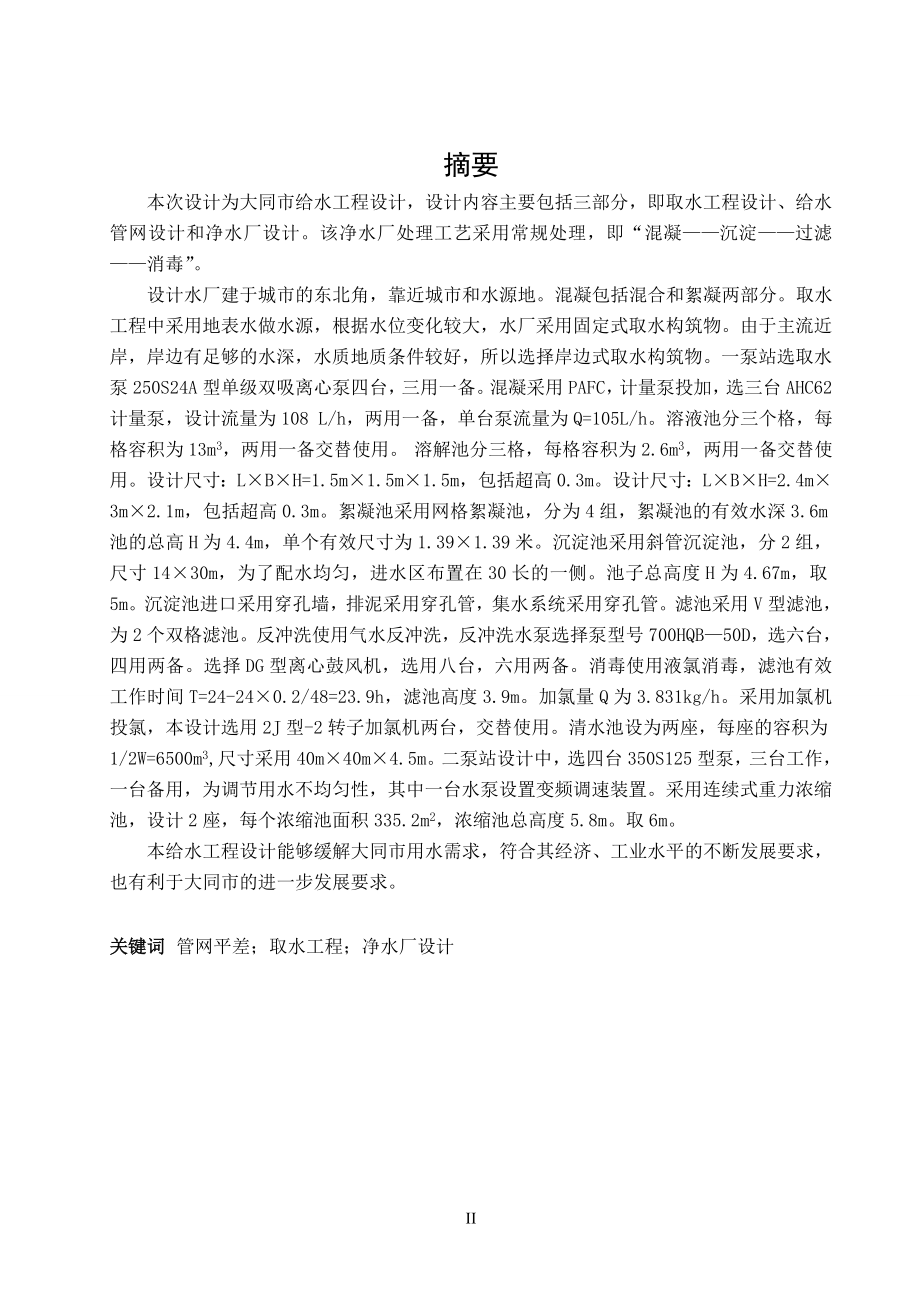

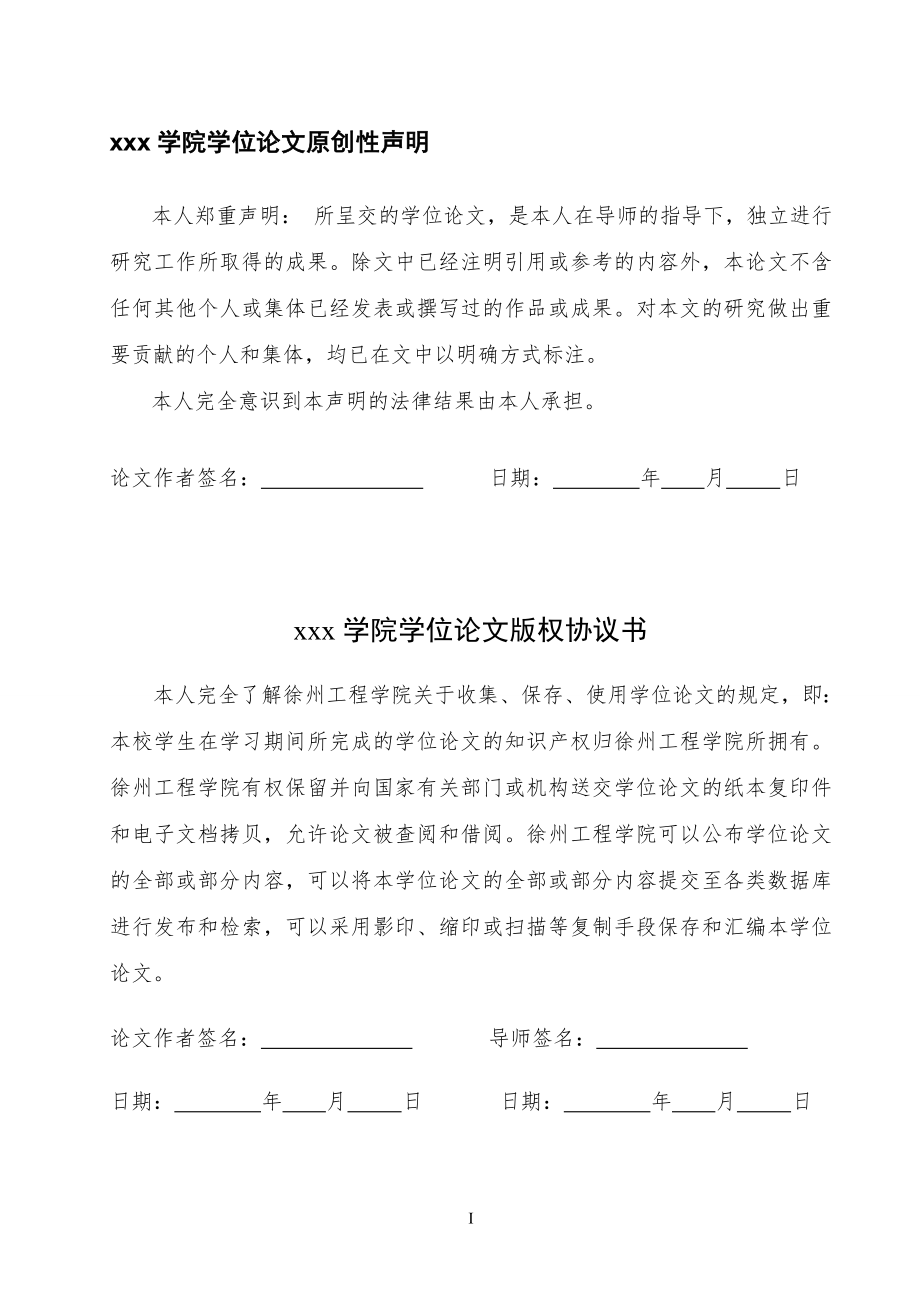

2、由本人承担。论文作者签名： 日期： 年 月 日xxx学院学位论文版权协议书本人完全了解徐州工程学院关于收集、保存、使用学位论文的规定，即：本校学生在学习期间所完成的学位论文的知识产权归徐州工程学院所拥有。徐州工程学院有权保留并向国家有关部门或机构送交学位论文的纸本复印件和电子文档拷贝，允许论文被查阅和借阅。徐州工程学院可以公布学位论文的全部或部分内容，可以将本学位论文的全部或部分内容提交至各类数据库进行发布和检索，可以采用影印、缩印或扫描等复制手段保存和汇编本学位论文。论文作者签名： 导师签名： 日期： 年 月 日 日期： 年 月 日摘要本次设计为大同市给水工程设计，设计内容主要包括三部分，即
3、取水工程设计、给水管网设计和净水厂设计。该净水厂处理工艺采用常规处理，即“混凝沉淀过滤消毒”。 设计水厂建于城市的东北角，靠近城市和水源地。混凝包括混合和絮凝两部分。取水工程中采用地表水做水源，根据水位变化较大，水厂采用固定式取水构筑物。由于主流近岸，岸边有足够的水深，水质地质条件较好，所以选择岸边式取水构筑物。一泵站选取水泵250S24A型单级双吸离心泵四台，三用一备。混凝采用PAFC，计量泵投加，选三台AHC62计量泵，设计流量为108 L/h，两用一备，单台泵流量为Q=105L/h。溶液池分三个格，每格容积为13m3，两用一备交替使用。 溶解池分三格，每格容积为2.6m3，两用一备交替使
4、用。设计尺寸：LBH=1.5m1.5m1.5m，包括超高0.3m。设计尺寸：LBH=2.4m3m2.1m，包括超高0.3m。絮凝池采用网格絮凝池，分为4组，絮凝池的有效水深3.6m池的总高H为4.4m，单个有效尺寸为1.391.39米。沉淀池采用斜管沉淀池，分2组，尺寸1430m，为了配水均匀，进水区布置在30长的一侧。池子总高度H为4.67m，取5m。沉淀池进口采用穿孔墙，排泥采用穿孔管，集水系统采用穿孔管。滤池采用V型滤池，为2个双格滤池。反冲洗使用气水反冲洗，反冲洗水泵选择泵型号700HQB50D，选六台，四用两备。选择DG型离心鼓风机，选用八台，六用两备。消毒使用液氯消毒，滤池有效工作
5、时间T=24-240.2/48=23.9h，滤池高度3.9m。加氯量Q为3.831kg/h。采用加氯机投氯，本设计选用2J型-2转子加氯机两台，交替使用。清水池设为两座，每座的容积为1/2W=6500m3,尺寸采用40m40m4.5m。二泵站设计中，选四台350S125型泵，三台工作，一台备用，为调节用水不均匀性，其中一台水泵设置变频调速装置。采用连续式重力浓缩池，设计2座，每个浓缩池面积335.2m2，浓缩池总高度5.8m。取6m。本给水工程设计能够缓解大同市用水需求，符合其经济、工业水平的不断发展要求，也有利于大同市的进一步发展要求。关键词 管网平差；取水工程；净水厂设计AbstractT
6、he design of Datong water engineering, design mainly includes three parts, namely, water engineering, water supply network design and purification plant design. The net water treatment process using conventional processing, namely coagulation - sedimentation - filtration - disinfection.Design waterw
7、orks was built in the northeast corner of the city, close to the city and water sources. Coagulation and flocculation comprises mixing two parts. Surface water intake project used to do water, according to water level changes greater use of fixed water intake structures. As mainstream inshore, the s
8、hore there is sufficient water depth, water quality, good geological conditions, so select shore style intake structures. . Select a pumping station pumps 250S24A single-stage double suction centrifugal pump four, three and one standby. Coagulation using PAFC, metering pump dosing, the election of t
9、hree AHC62 metering pump design flow of 108 L / h, Uses a single pump flow rate Q = 105L / h. Solution tank is divided into three cells, each cell volume of 13m3, Uses a used interchangeably. Dissolved pool is divided into three cells, each cell volume of 2.6m3, Uses a used interchangeably. Design d
10、imensions: L B H = 1.5 1.5 1.5, including ultra 0.3m. Design dimensions: L B H = 2.4 3 2.1, including ultra 0.3m. Flocculation flocculation using a grid, divided into four groups, the effective depth of 3.6m flocculation tank total height H is 4.4m, single effective size of 1.39 1.39 meters Sediment
11、ation tank using inclined tube sedimentation tank, divided into two groups, the size 14 30m, for uniform water distribution, water district arranged in 30 long side. Pond total height H is 4.67m, take 5m. Sedimentation tanks imported perforated walls, mud using perforated pipe, perforated pipe drain
12、age system. Filter using V-filter for the two pairs of lattice filter. Using air and water backwash backwash backwash pump selection pump model 700HQB-50D, choose five, four and one standby. Select DG-type centrifugal blower, use eight units, six with two devices. Disinfection using chlorine disinfe
13、ction, filter effective working time T = 24-24 0.2/48 = 23.9h, filter height 3.9m. Q is the amount of chlorine 3.831kg / h. Dosing of chlorine chlorination machine, the design uses 2J type -2 chlorinator two rotors, are used interchangeably. Set two pools, each block volume of 1/2 W = 6500m3, clear
14、pool size using 40.0m 40.0m 4.5m. Two pumping station design, selected four 350S125-type pump, three work, a spare , to regulate the water inhomogeneity, which set up a pump frequency control devices. Using a continuous gravity thickener, design 2, each of the concentrated pool area 335.2m2, concent
15、rated pool total height 5.8m. Take 6m.The water supply project designed to ease the demand for water in Datong, in line with its economic, industrial level of the continuous development requirements, but also conducive to the further development of Datong requirements.Keywords the intake works the water pipe network design the water treatment plant design目 录1 绪 论12 工程概况133 取水工程163.1设计用水量的确定163.1.1最高日综合生活用水量Q1163.1.2工业企业用水量Q2163.1.3公共建筑用水量Q3163.1.4浇洒道路和绿地用水量Q4163.1.5管网漏损水量Q5173.1.6未预见用水量Q6173.1
