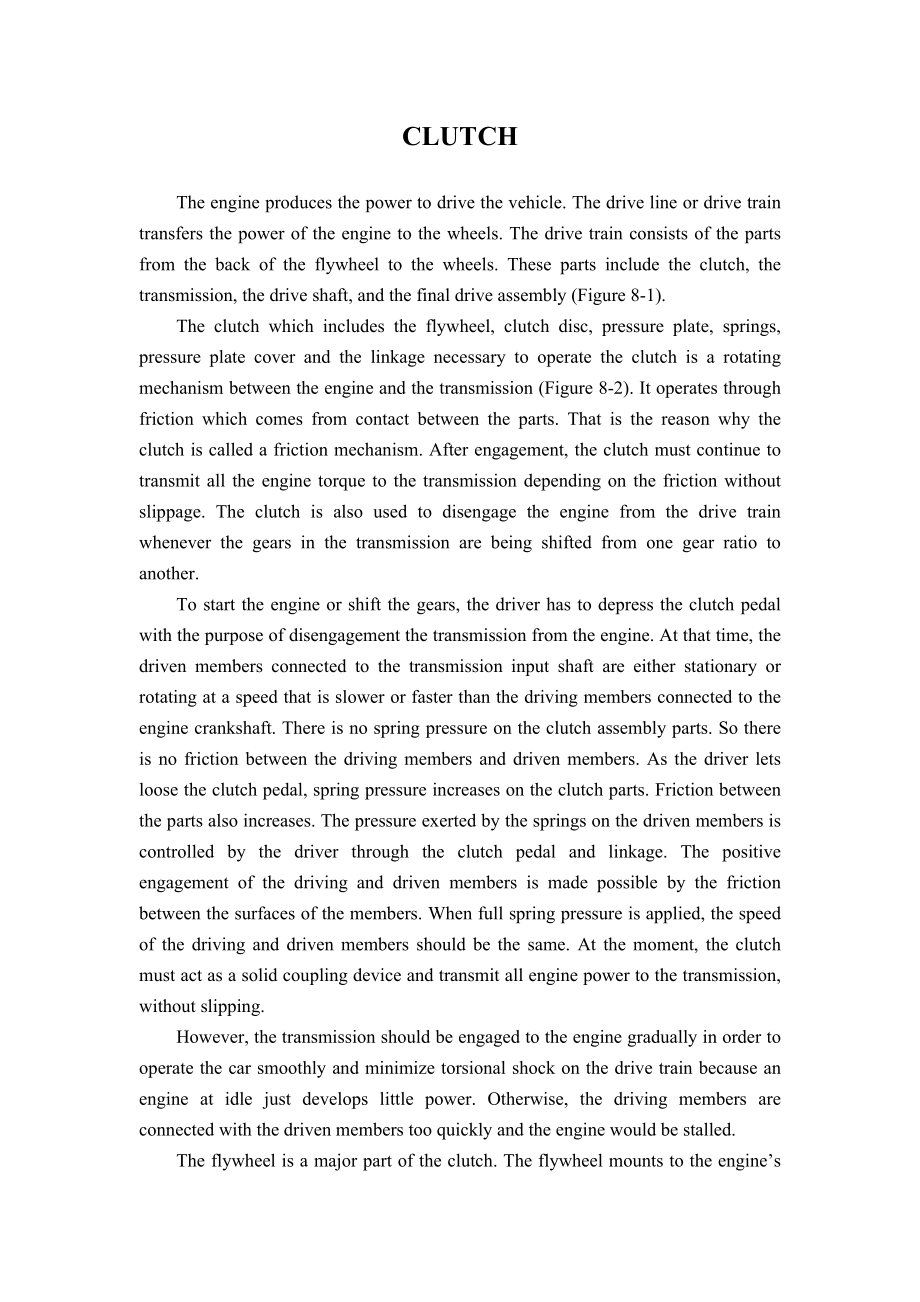

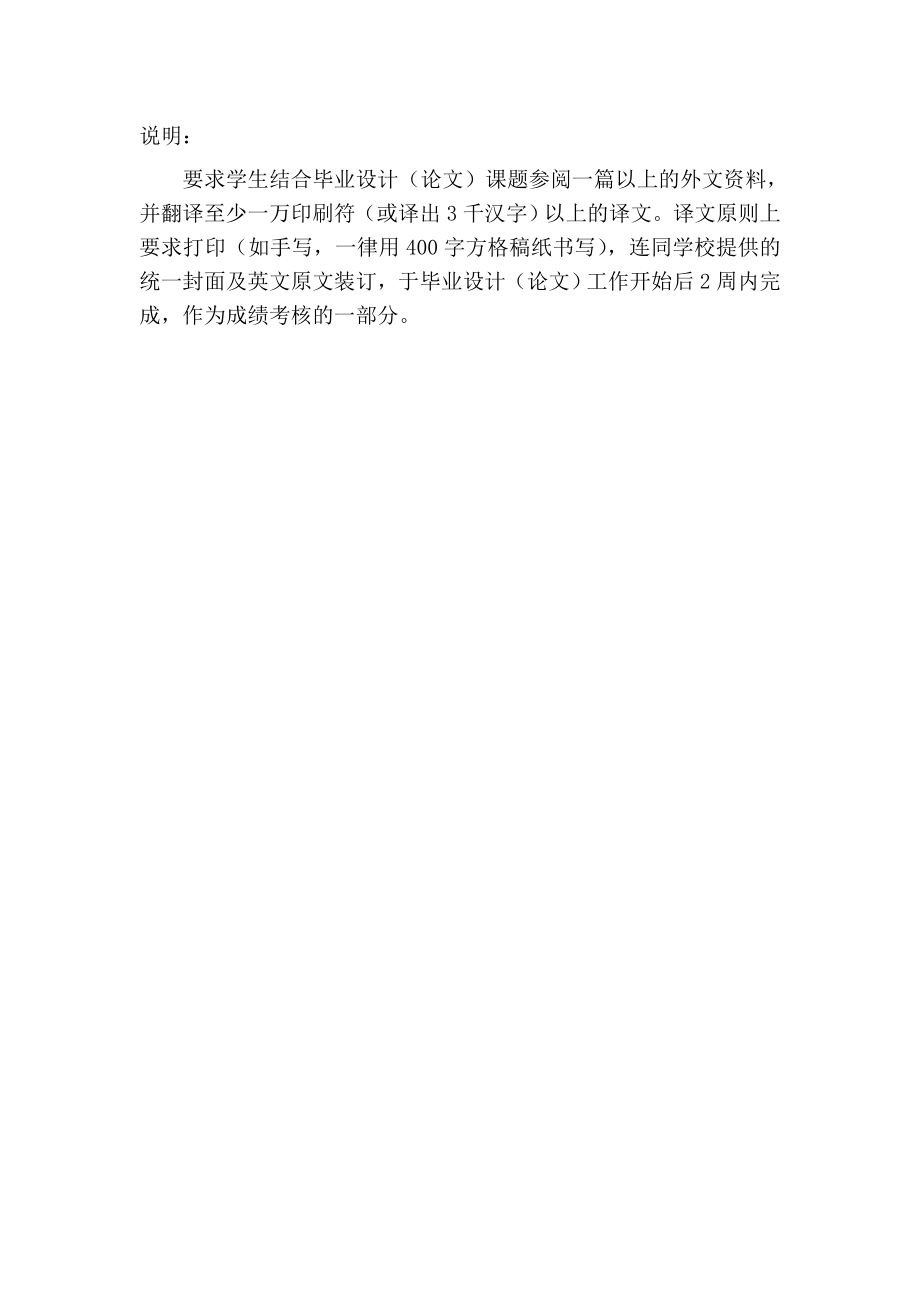

1、毕 业 设 计（论 文）外 文 参 考 资 料 及 译 文译文题目： CLUTCH 离合器 学生姓名： 学 号： 专 业： 所在学院： 指导教师： 职 称： 20xx年 2月 27日说明：要求学生结合毕业设计（论文）课题参阅一篇以上的外文资料，并翻译至少一万印刷符（或译出3千汉字）以上的译文。译文原则上要求打印（如手写，一律用400字方格稿纸书写），连同学校提供的统一封面及英文原文装订，于毕业设计（论文）工作开始后2周内完成，作为成绩考核的一部分。CLUTCHThe engine produces the power to drive the vehicle. The drive line o
2、r drive train transfers the power of the engine to the wheels. The drive train consists of the parts from the back of the flywheel to the wheels. These parts include the clutch, the transmission, the drive shaft, and the final drive assembly (Figure 8-1).The clutch which includes the flywheel, clutc
3、h disc, pressure plate, springs, pressure plate cover and the linkage necessary to operate the clutch is a rotating mechanism between the engine and the transmission (Figure 8-2). It operates through friction which comes from contact between the parts. That is the reason why the clutch is called a f
4、riction mechanism. After engagement, the clutch must continue to transmit all the engine torque to the transmission depending on the friction without slippage. The clutch is also used to disengage the engine from the drive train whenever the gears in the transmission are being shifted from one gear
5、ratio to another.To start the engine or shift the gears, the driver has to depress the clutch pedal with the purpose of disengagement the transmission from the engine. At that time, the driven members connected to the transmission input shaft are either stationary or rotating at a speed that is slow
6、er or faster than the driving members connected to the engine crankshaft. There is no spring pressure on the clutch assembly parts. So there is no friction between the driving members and driven members. As the driver lets loose the clutch pedal, spring pressure increases on the clutch parts. Fricti
7、on between the parts also increases. The pressure exerted by the springs on the driven members is controlled by the driver through the clutch pedal and linkage. The positive engagement of the driving and driven members is made possible by the friction between the surfaces of the members. When full s
8、pring pressure is applied, the speed of the driving and driven members should be the same. At the moment, the clutch must act as a solid coupling device and transmit all engine power to the transmission, without slipping.However, the transmission should be engaged to the engine gradually in order to
9、 operate the car smoothly and minimize torsional shock on the drive train because an engine at idle just develops little power. Otherwise, the driving members are connected with the driven members too quickly and the engine would be stalled.The flywheel is a major part of the clutch. The flywheel mo
10、unts to the engines crankshaft and transmits engine torque to the clutch assembly. The flywheel, when coupled with the clutch disc and pressure plate makes and breaks the flow of power from the engine to the transmission.The flywheel provides a mounting location for the clutch assembly as well. When
11、 the clutch is applied, the flywheel transfers engine torque to the clutch disc. Because of its weight, the flywheel helps to smooth engine operation. The flywheel also has a large ring gear at its outer edge, which engages with a pinion gear on the starter motor during engine cranking.The clutch di
12、sc fits between the flywheel and the pressure plate. The clutch disc has a splined hub that fits over splines on the transmission input shaft. A splined hub has grooves that match splines on the shaft. These splines fit in the grooves. Thus, the two parts are held together. However, back-and-forth m
13、ovement of the disc on the shaft is possible. Attached to the input shaft, At disc turns at the speed of the shaft.The clutch pressure plate is generally made of cast iron. It is round and about the same diameter as the clutch disc. One side of the pressure plate is machined smooth. This side will p
14、ress the clutch disc facing are against the flywheel. The outer side has various shapes to facilitate attachment of spring and release mechanisms. The two primary types of pressure plate assemblies are coil spring assembly and diaphragm spring (Figure 8-3).In a coil spring clutch the pressure plate
15、is backed by a number of coil springs and housed with them in a pressed-steel cover bolted to the flywheel. The springs push against the cover. Neither the driven plate nor the pressure plate is connected rigidly to the flywheel and both can move either towards it or away. When the clutch pedal is depressed a thrust pad riding on a carbon or ball thrust bearing is forced towards the flywheel. Levers pivoted so that they engage with the thrust
